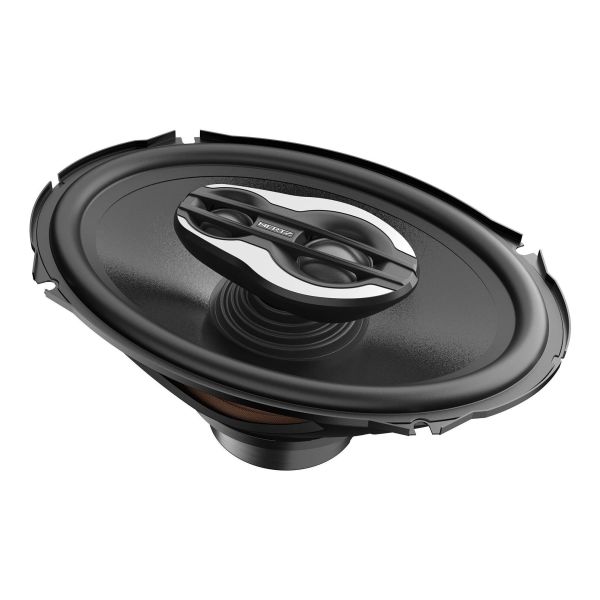

SPL SHOW 6X9" 3-WAY COAXIAL SPEAKER - PAIR (SX 690 H NEO)
Description

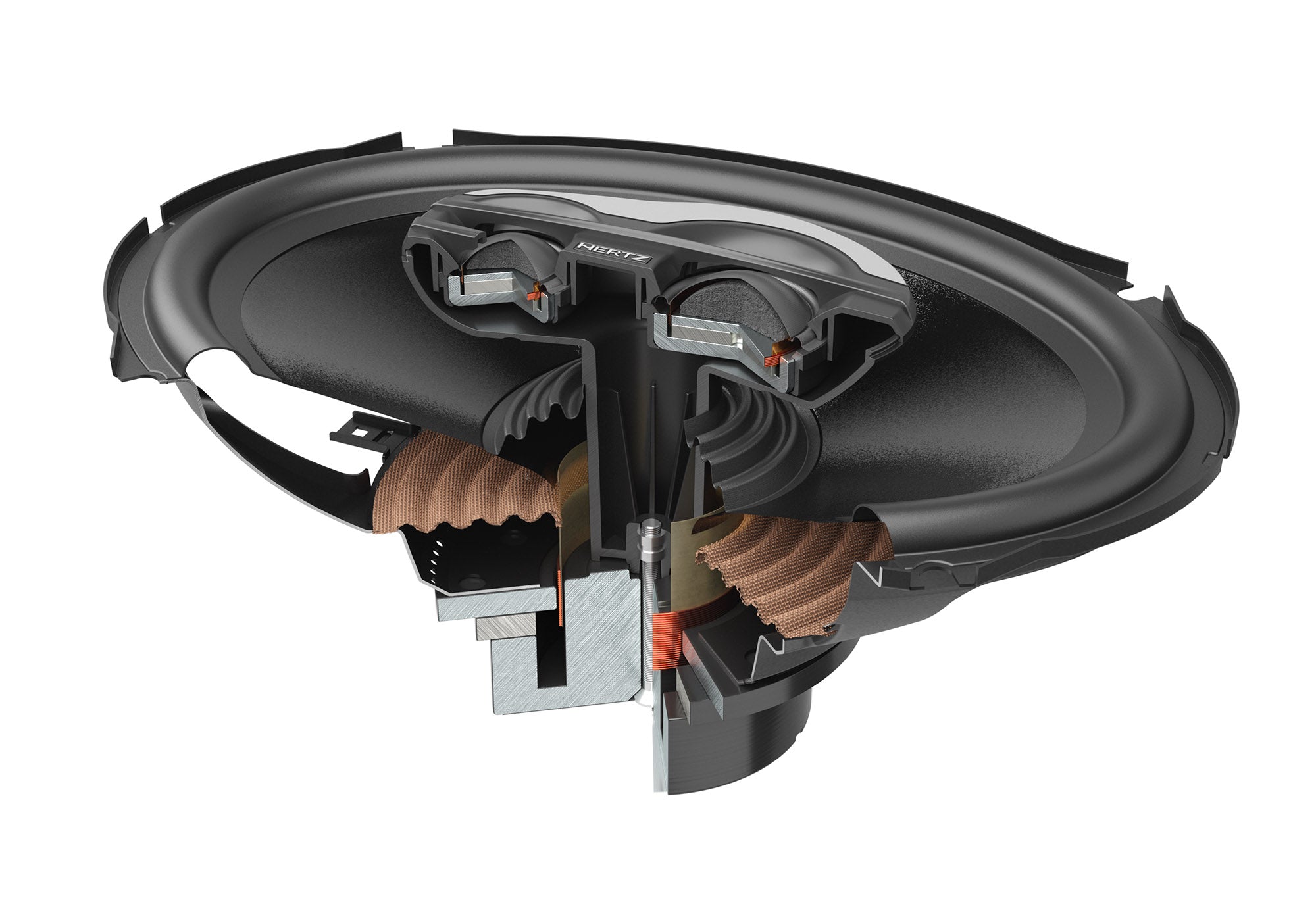

SX 690 H NEO (Order code SX690H) coaxial for 2024 Harley is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4" dome tweeter and 1" dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
Specifications
- Component: SPL Coaxial (Pair)
- Size: 6x9"
- Power Handling:
- Peak: 260W
- Continuous: 130W
- Impedance: 4 Ohm
- Tweeter Diaphragm: 29mm (1.14")
- Woofer Voice Coil: 38mm (1.5")
- Tweeter Voice Coil: 25mm (1")

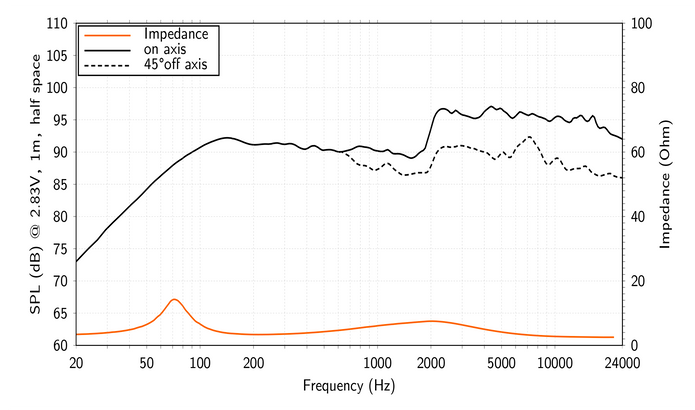

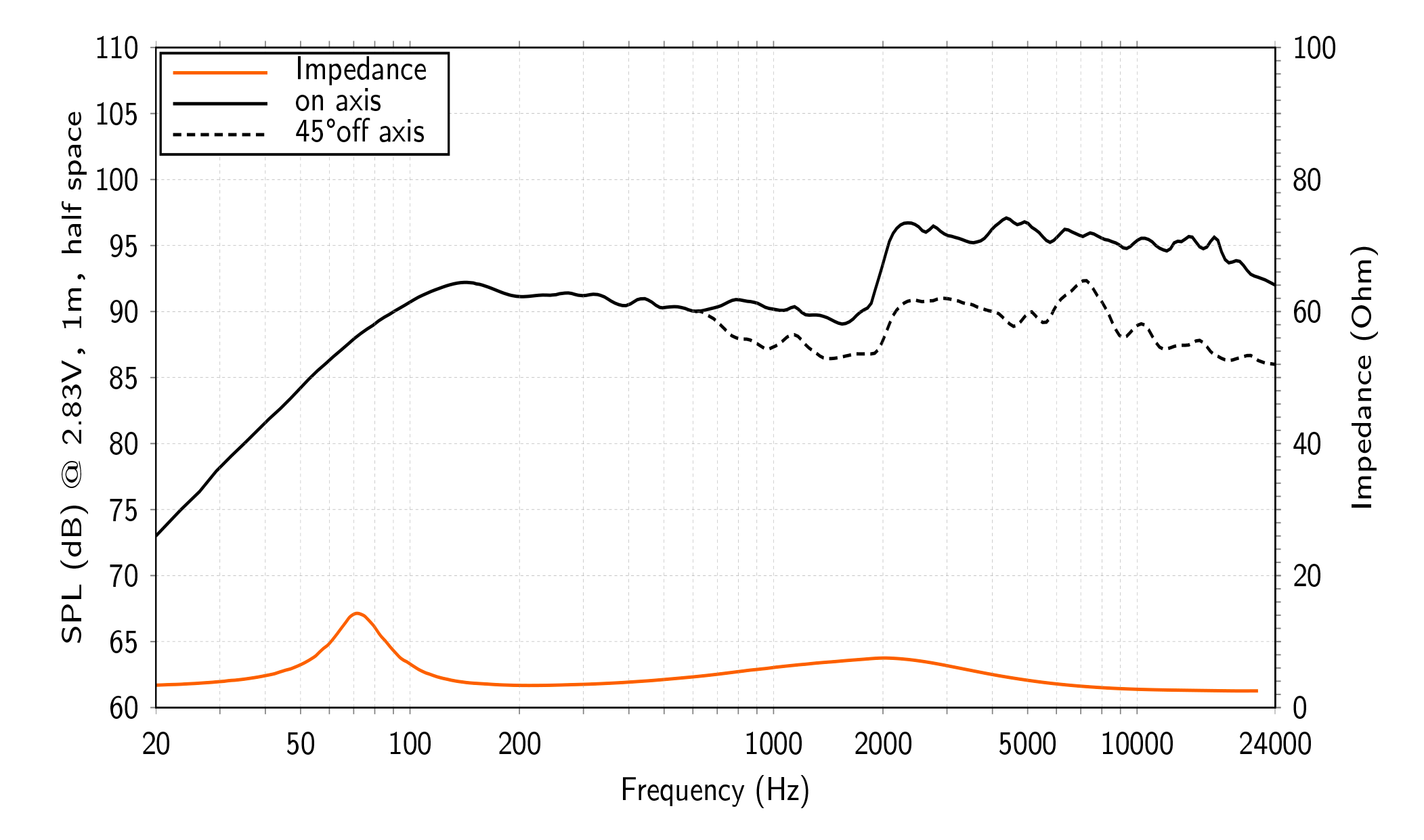

- Frequency Response: 65 - 24k Hz
- Woofer Magnet Size: 110 x 45 x 20mm (4.33 x 1.77 x 0.79")
- Tweeter Magnet Size: 24.5 x 6 x 3.5mm (0.96 x 0.24 x 0.14")
- Woofer Magnet: Special Neodymium N38 H
- Tweeter Magnet: Special Neodymium N38 H
- Cone: Water repellent pressed paper
- Dome: Tetolon
- Note: Griles not Included
Features
- Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
- Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
- Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.
- Hi-SPL Mid-Hi unit based on 1.4" dome tweeter and 1" dome super tweeter with resettable solid-state tweeter protection circuit.
- Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.
