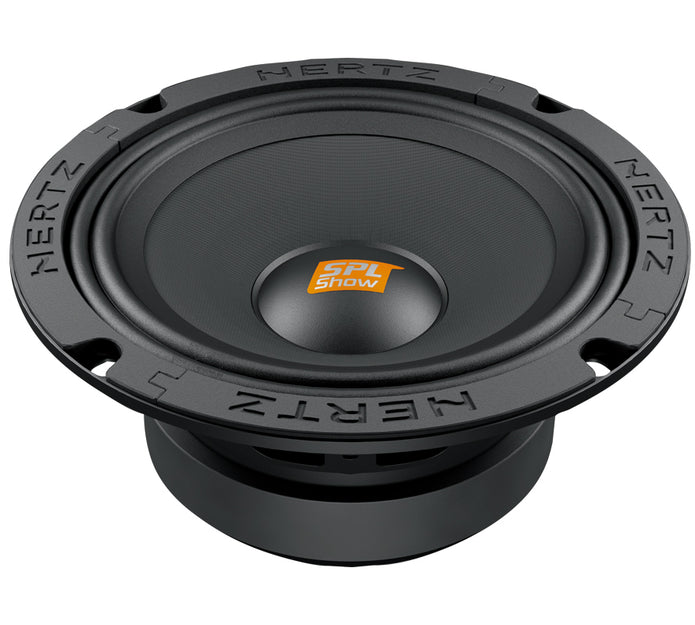

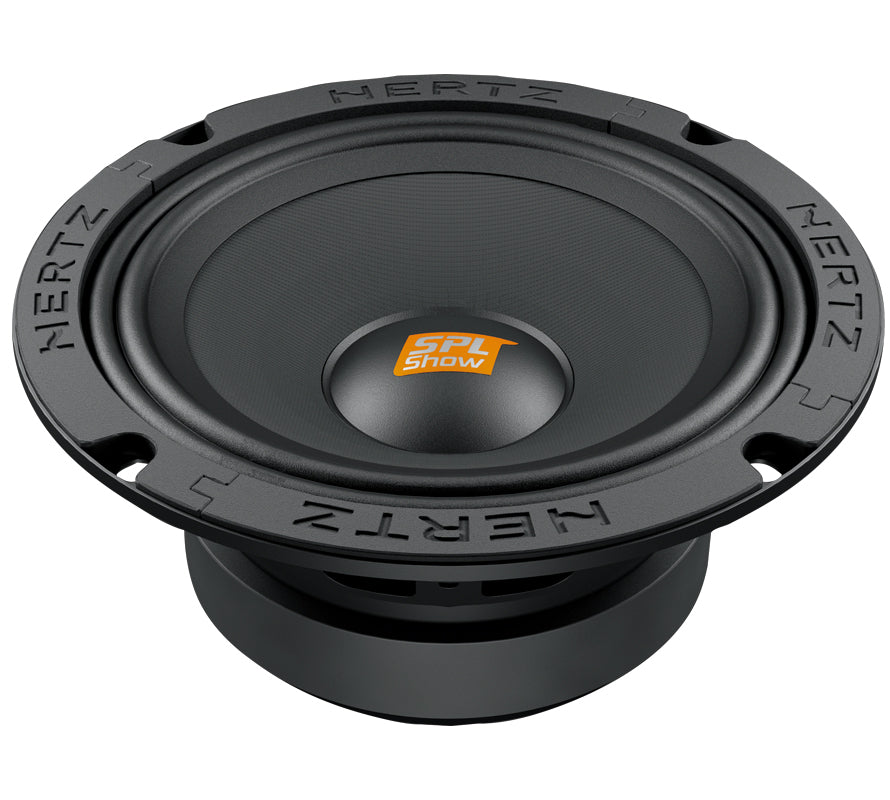

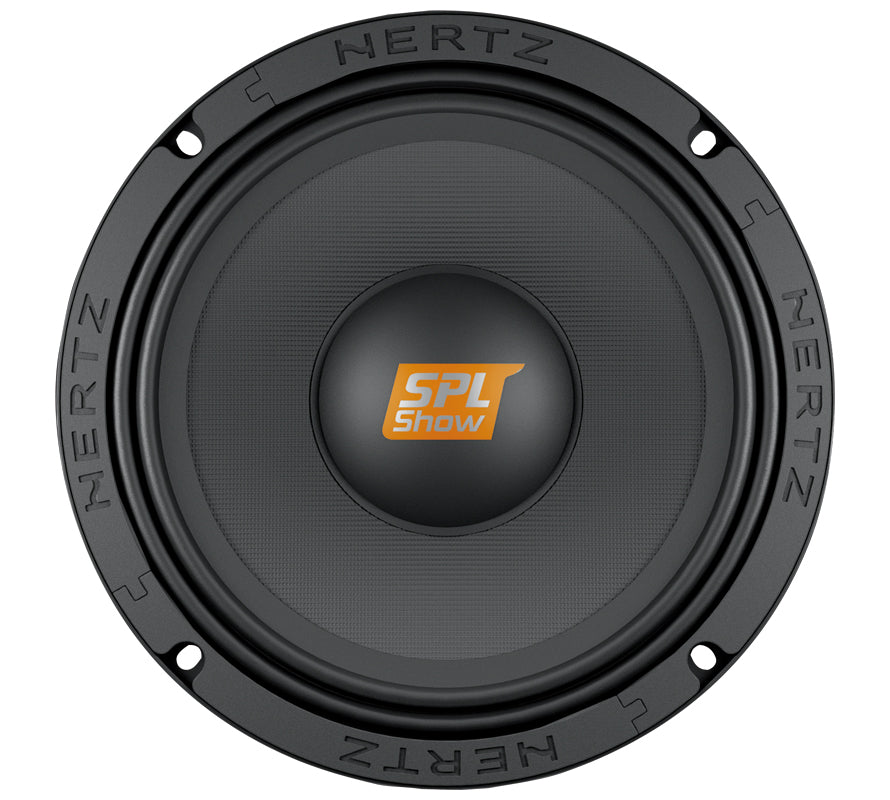

SPL SHOW 6.5" MIDRANGE WOOFER COMPONENT - PAIR (SV 165.1)

Description

The SV 165.1 (Order Code SV165.1) car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

Specifications

• Sold in pairs
• Size: 165mm (6.5")
• Power Handling - Continuous 150W
• Power Handling - Peak 400W
• Impedance: 4 Ohm
• Voice Coil: 38mm (1.5")

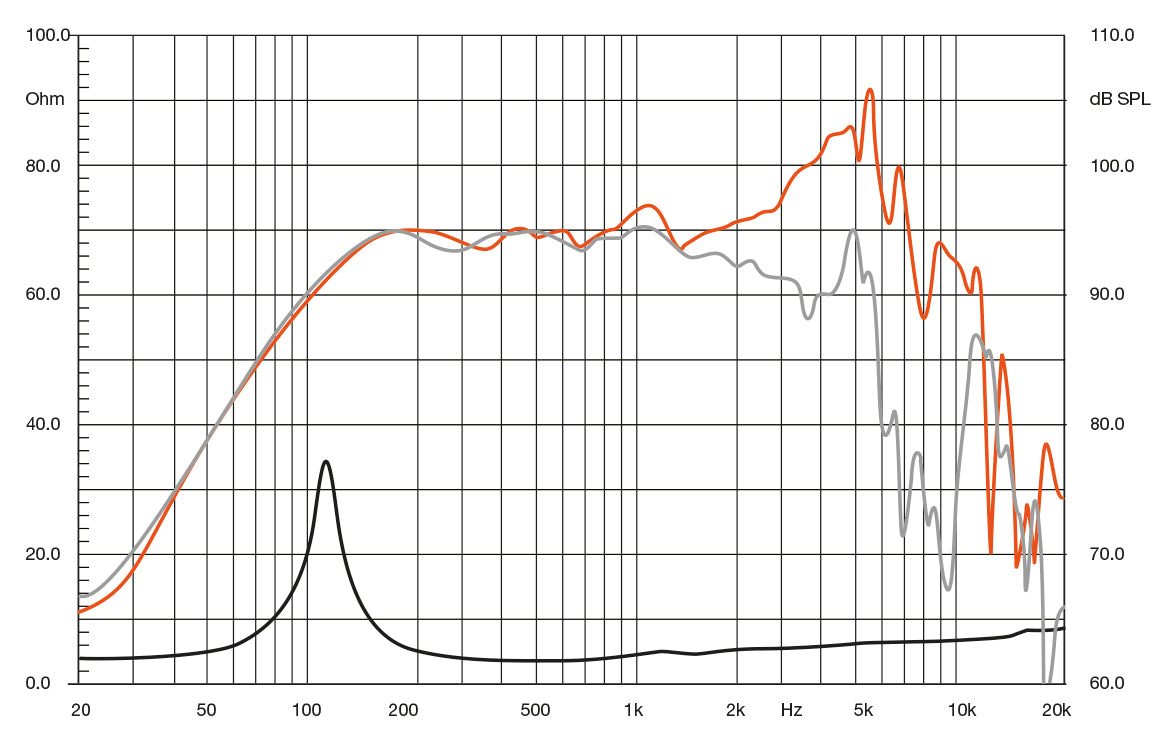

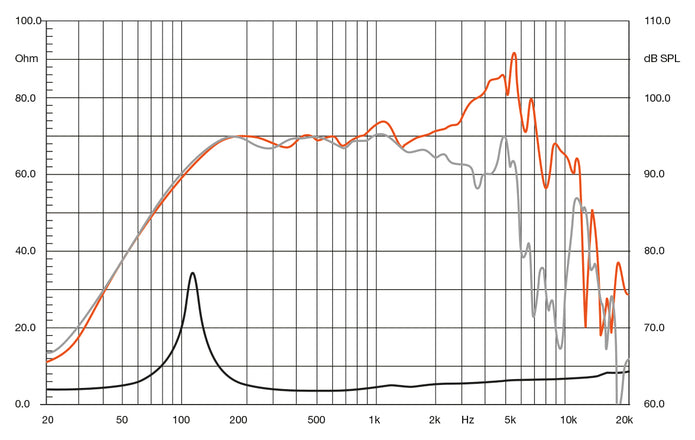

• Frequency response: 100 - 10k Hz
• Sensitivity: 97 dB SPL
• Weight of one speaker: 1.85kg
• Magnet: High density flux ferrite
• Cone/Dome: Ultra light, non pressed paper

Features

The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
