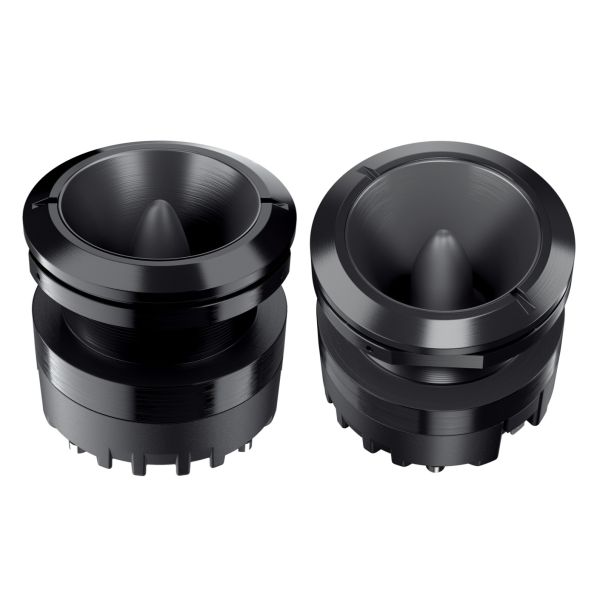

SPL SHOW 1.8" (46MM) HIGH EFFICIENCY COMPRESSION DRIVER - PAIR (ST 35A NEO)
SPL SHOW 1.8
SPL SHOW 1.8
SPL SHOW 1.8
SPL SHOW 1.8

SPL SHOW 1.8" (46MM) HIGH EFFICIENCY COMPRESSION DRIVER - PAIR (ST 35A NEO)

Contact Us to order

    Description

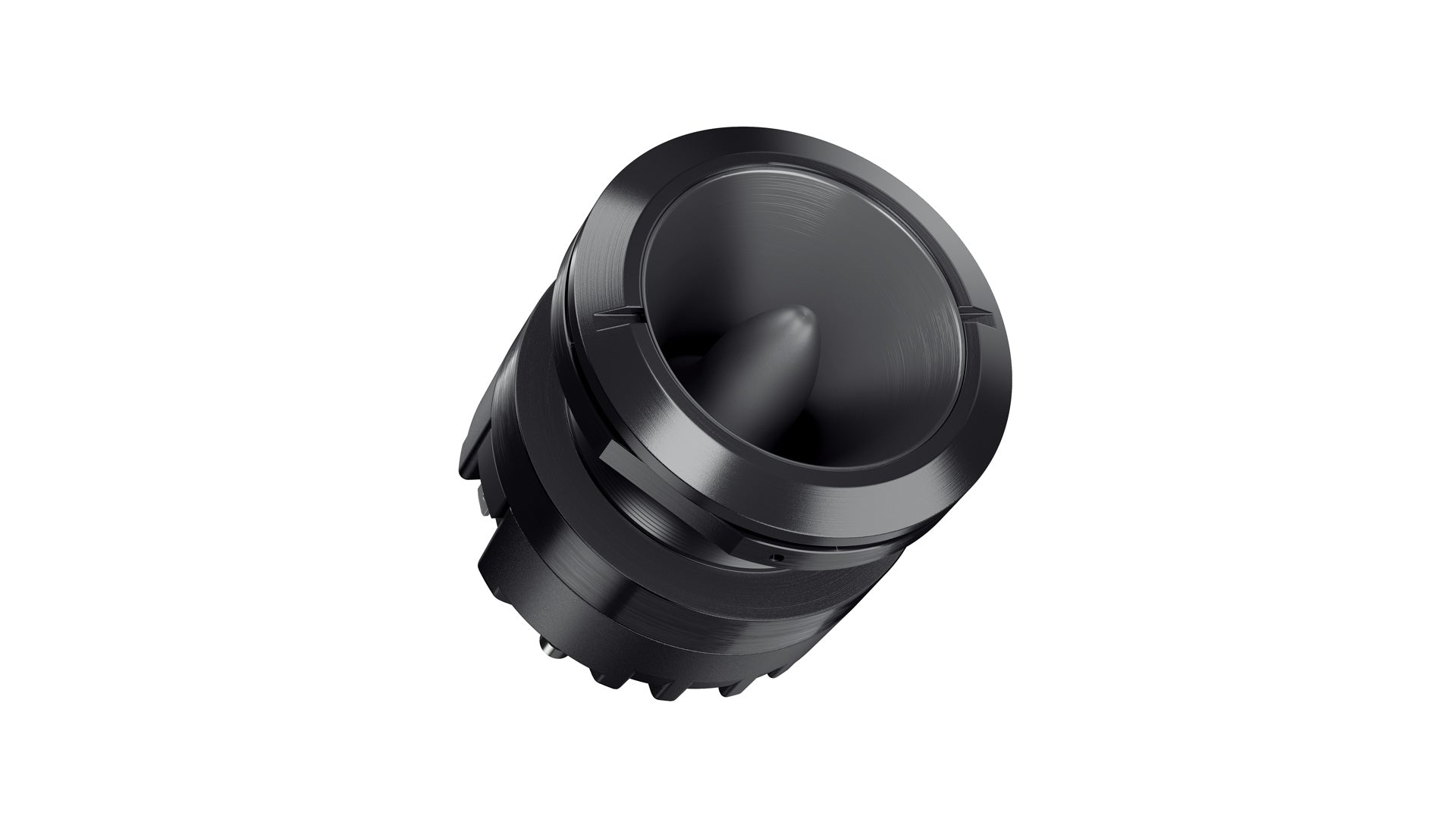

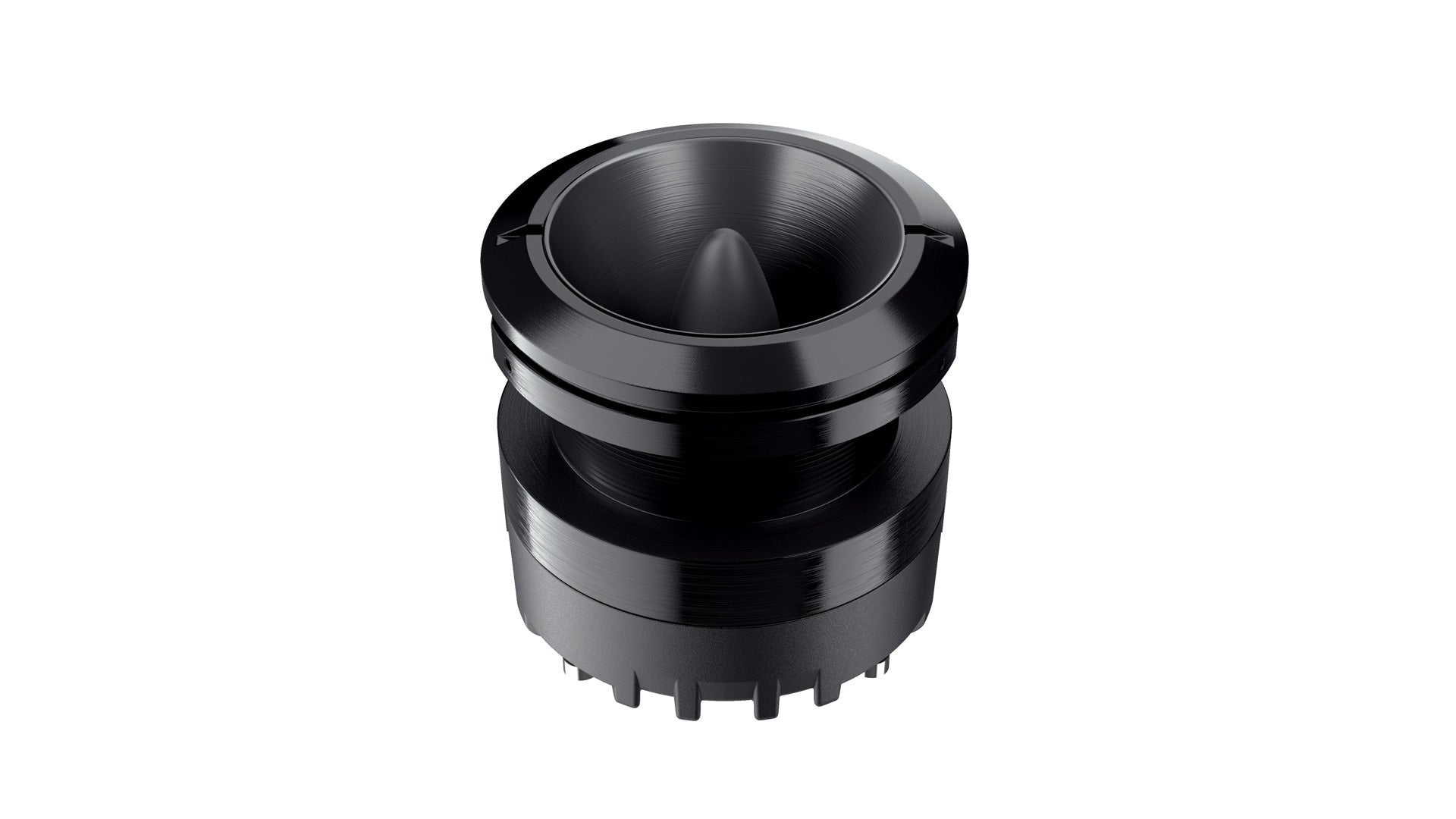

    ST 35A NEO (Order Code ST35ANEO) line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. This is the Active version which provides tweeters only.

    Specifications

    • System: High Efficiency Compression Driver Tweeter
    • Size: 46mm (1.8")
    • Power Handling:
      • Peak: 120W
    • Impedance: 4 Ohm
    • Tweeter Voice Coil: 35mm (1.8")

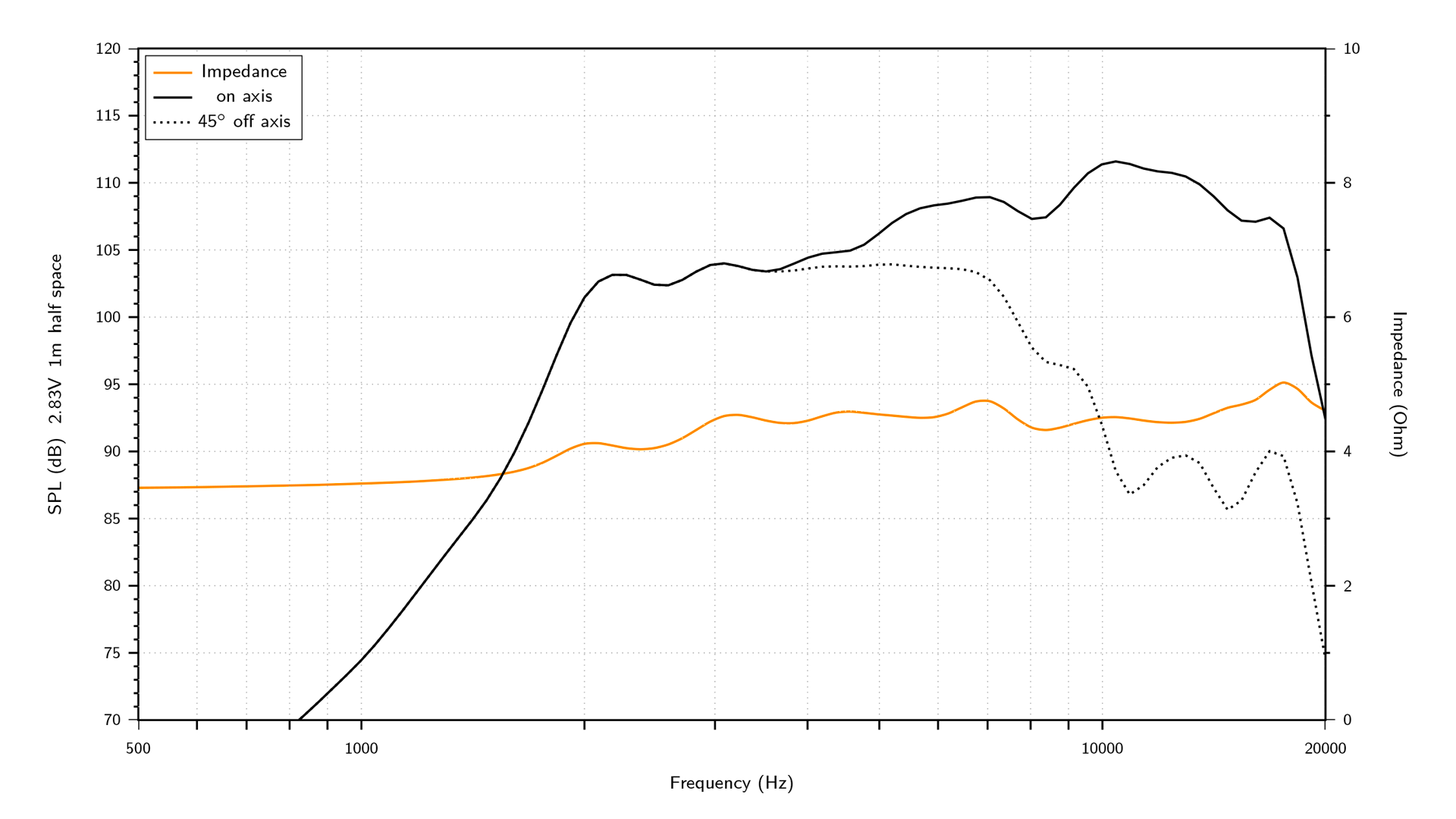

    • Frequency Response: 2k - 20k Hz
    • Weight of One Tweeter: 0.53 kg
    • Tweeter Magnet: Neodymium
    • Dome: Aluminium
    • Notes: For active use, no crossover box included.

    Features

    • Powerful Neodymium magnet providing high performance with compact size

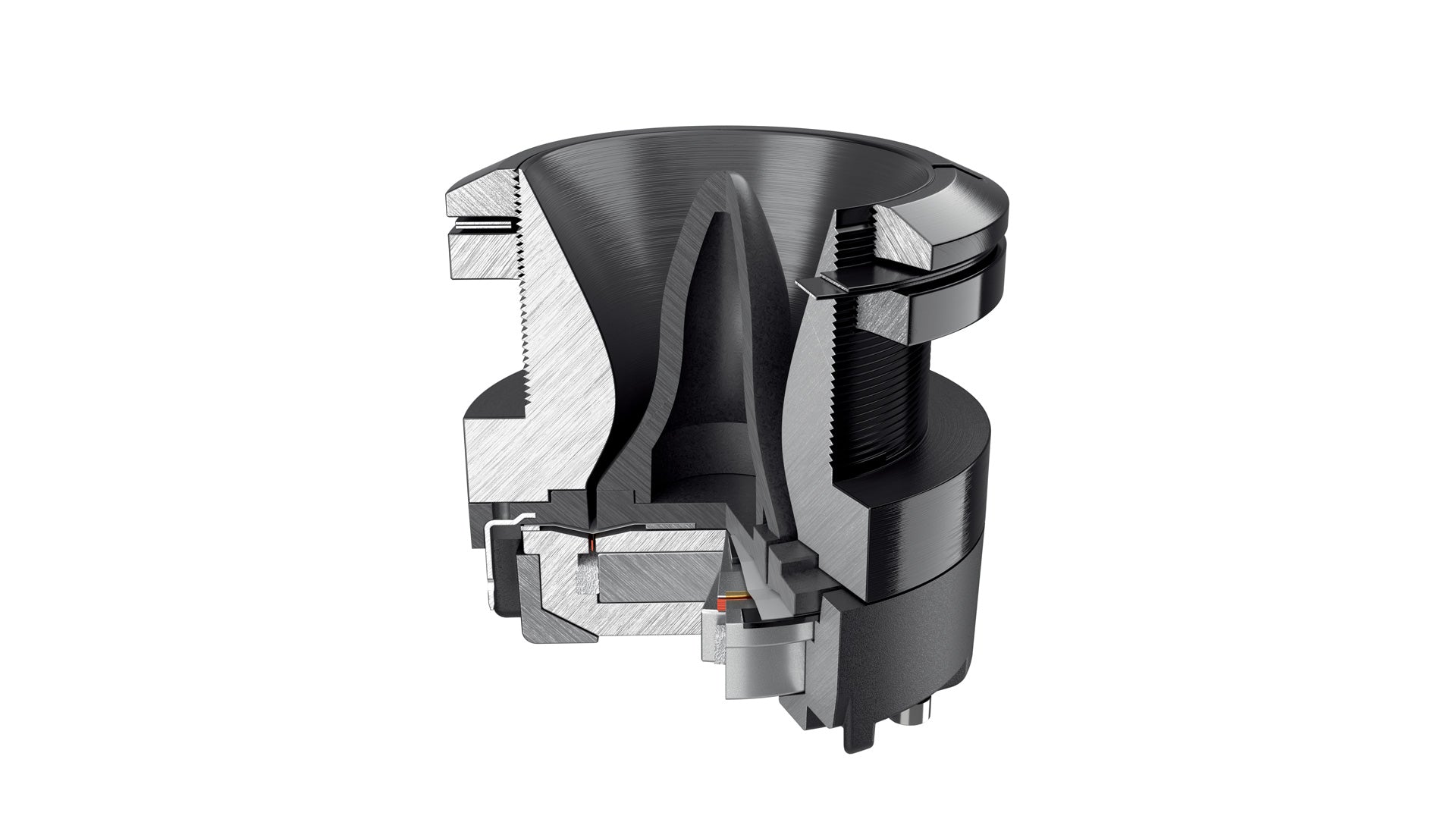

    • FEM (Finite Element Method) optimized phase-plug and loading horn
    • CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit
    • Extra-light aluminium membrane to maximize SPL with high current, screw terminals
    • Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
    • Aluminium back cover for superior heat dissipation
    • Impressive low frequency extension and efficiency
