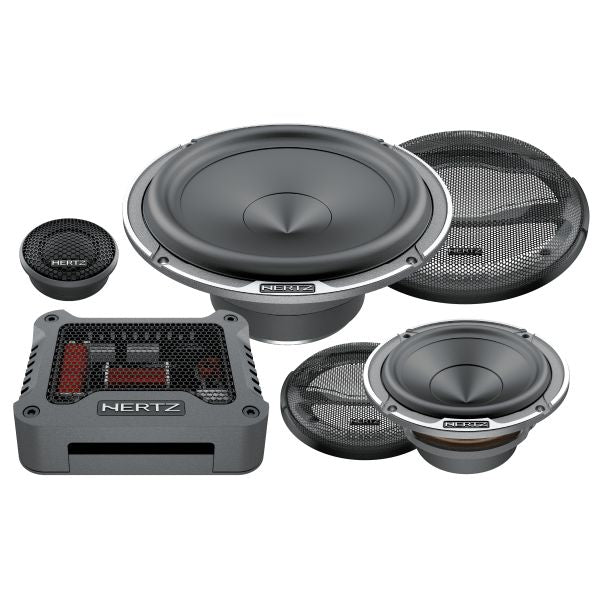

MILLE PRO 6.5" 3-WAY COMPONENT SPEAKER - PAIR (MPK 163.3 PRO)

Description

The three way MPK 163.3 PRO (Order Code MPK163.3) car audio speakers system is dedicated to those who want the best: the MP 70.3 midrange featuring Neodymium double magnet inside the coil produces an enthralling mid range, perfect to combine with the powerful mid-low of the MP 165.3 woofer as well as with the detailed high range of the MP25.3 tweeter. The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range. The dedicated MPCX 3.3 crossover provides optimized crossover points to exploit the midrange remarkable extension using ultra-selected components.

Specifications

• System: Component
• Size:
  • Woofer: 165mm (6.5")
  • Midrange: 70mm (3")
• Power Handling:
  • Continuous: 150W
  • Peak: 300W
• Impedance: 4 Ohm
• Tweeter Diaphragm: 29mm (1.14")
• Woofer Voice Coil: 25mm (1")
• Tweeter Voice Coil: 25mm (1")
• Sensitivity: 92 dB
• Frequency Response: 40 - 22.5k Hz
• Woofer Magnet Size (D x d x h): 90 x 45 x 17mm (3.54 x 1.77 x 0.67")
• Tweeter Magnet Size (D x h):
• Weight of One Speaker: 1.07 kg
• Weight of Midrange: 0.17 kg
• Weight of Tweeter: 0.07 kg
• Woofer Magnet: High Density Flux Ferrite
• Midrange and Tweeter Magnet: Neodymium
• Cone: Pressed-pulp cone with cotton fibers
• Dome: Tetolon
• Notes: Grilles included

Features

• Pure copper voice coil wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
• Exponential V-cone profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response.
• Cone profile geometrically optimized for utmost linearity and dispersion in the mid frequency range.
• Boundary Free rubber surround, for improved efficiency and wider mid-bass frequency.
• High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
• Low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
• Tetolon fiber soft dome, for a natural yet detailed reproduction of musical nuances.
• Center Tuning Duct geometry, for lower resonance frequency and reduced harmonic distortion.
• Rear chamber filled with selected damping material and sized for lower Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.

Packaging

Giftbox
