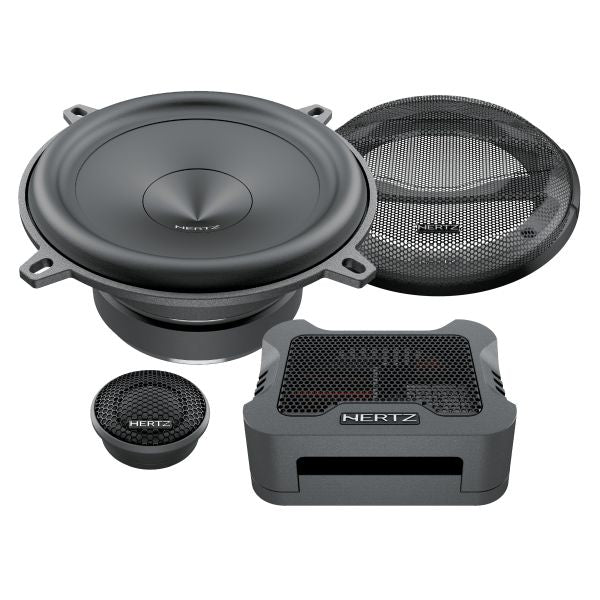

MILLE PRO 5" 2-WAY COMPONENT SPEAKER - PAIR (MPK 130.3 PRO)

MILLE PRO 5" 2-WAY COMPONENT SPEAKER - PAIR (MPK 130.3 PRO)

Contact Us to order

    Description

    The MPK 130.3 PRO (Order Code MPK130.3) car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone and Boundary Free Surround technologies the MP 130.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 130.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.

    Specifications

    • System: Component
    • Size: 130mm (5")
    • Power Handling:
      • Continuous: 100W
      • Peak: 200W
    • Impedance: 4 Ohm
    • Tweeter Diaphragm: 29mm (1.14")
    • Woofer Voice Coil: 25mm (1")
    • Tweeter Voice Coil: 25mm (1")
    • Sensitivity: 91 dB
    • Frequency Response: 60 - 22.5k Hz
    • Weight of One Speaker: 0.95 kg
    • Weight of One Tweeter: 0.07 kg
    • Woofer Magnet: High Density Flux Ferrite
    • Tweeter Magnet: Neodymium
    • Cone: Pressed-pulp cone with cotton fibers
    • Dome: Tetolon
    • Notes: Grille included

    Features

    • Pure copper voice coil wound on a Polyamide former combining excellent power handling combined with fast musical transients response.
    • Exponential V-cone profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid frequency range.
    • Boundary Free rubber surround, for improved efficiency and wider mid-bass frequency.
    • High density flux ferrite magnet combined with very low carbon content iron plates, for low distortion at high power levels.
    • Low mounting depth, acoustically transparent aluminium alloy basket with spider vent holes.
    • Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
    • Rear chamber filled with selected damping material and sized for lower Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
    • Center Tuning Duct geometry, for lower resonance frequency and reduced harmonic distortion.
    • Small footprint design for easy installation, with top vent grille for efficient heat dissipation.

    Packaging

    Giftbox
