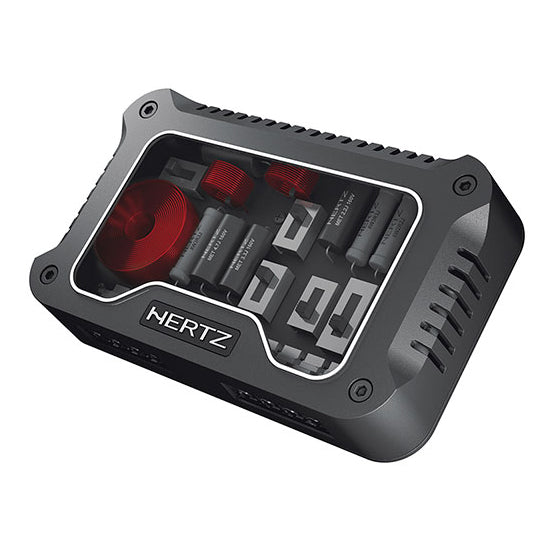

MILLE PRO CROSSOVER SET - PAIR (MPCX 2 TM.3 PRO)

MILLE PRO CROSSOVER SET - PAIR (MPCX 2 TM.3 PRO)

Contact Us to order

    Description

    The MPCX 2 TM.3 (Order Code MPCX2TM3) car audio crossover is specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.

    Specifications

    • Component: Crossovers
    • Adjustment: Tweeter 0 / +2 dB
    • Crossover:
      • Midrange: Low pass 5.5 kHz @ - 6 dB
      • Tweeter: Hi pass 5.5 kHz @ - 12 dB
    • Weight of one component: 0.16kg

    Features

    • Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission.
    • 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
    • 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded.
    • Small footprint design for easy installation, with top vent grille for efficient heat dissipation.
    • Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
