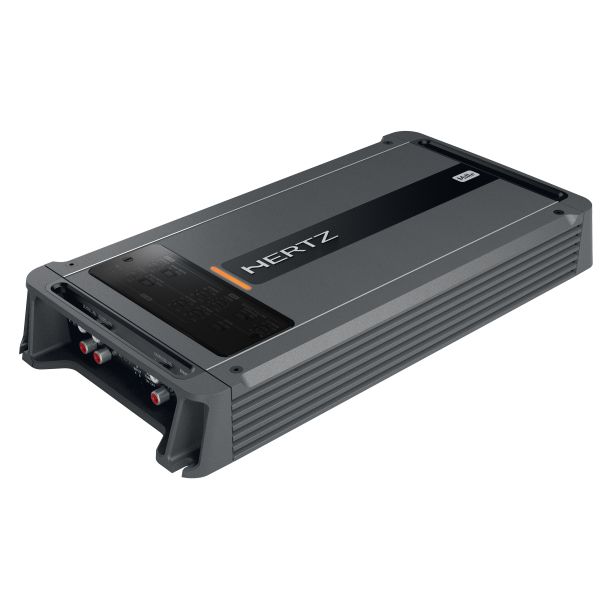

MILLE 950W 5 CHANNEL AMPLIFIER (ML POWER 5)
MILLE 950W 5 CHANNEL AMPLIFIER (ML POWER 5) — image 2

MILLE 950W 5 CHANNEL AMPLIFIER (ML POWER 5)

Contact Us to order

    Description

    Introducing the Hertz Mille ML Power 5 (Order Code MLPOWER5) 950W 5 Channel amplifier. Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 OHM) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

    Specifications

    • Channels: 5 - 3
    • Power supply voltage: 11 - 15 VDC
    • Idling current (power ON/OFF): 3 A / 0.04 mA
    • Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 50 A
    • Remote In: 4-15 VDC - 1 mA
    • Distortion - THD (100Hz at 4 Ohm): 0.08 percent
    • Bandwidth (A + B): 5 - 55 kHz
    • Bandwidth (C): 5 - 500Hz
    • S/N Ratio (A + B weighted at 1V): 100 dB
    • S/N Ratio (C weighted at 1V): 106 dB
    • Damping factor A + B (100Hz at 4Ohm): 50
    • Damping factor C (100Hz at 4Ohm): 90
    • Pre-ln sensitivity: 0.2-5VRMS
    • Load impedance (MIN): 2 Ohm

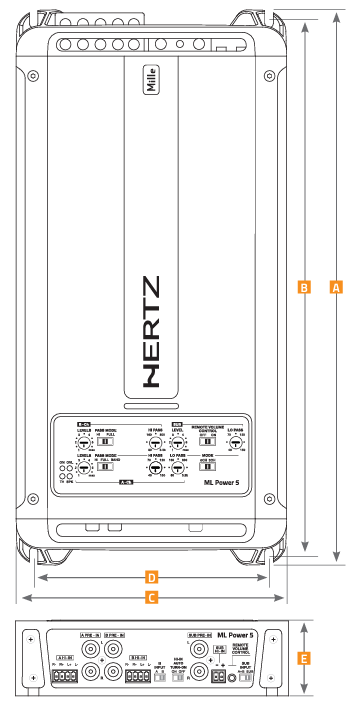

    • Size: 349 x 170 x 47mm
    • Weight: 3.09 kg
    • Adjustable Crossovers: Yes
    • Output Power (RMS) at 14.4 VDC, THD 1 Percent:
      • 5Ch: 70W x 4 (4 Ohm) + 380W x 1 (4 Ohm)
      • 5Ch: 100W x 4 + 550W x 1 (2 Ohm)
      • 3Ch: 200W x 2 (4 Ohm) + 380W x 1 (4 Ohm)
      • 3Ch: 200W x 2 (4 Ohm) + 550W x 1 (2 Ohm)
    • Total Power RMS: 950W
    • Inputs and Filters:
      • Inputs: Pre in and Speaker in
      • Pre out full range: Yes
      • Filters Full: Yes
    • Notes: Optional Bass Controller model HRCBM

    Features

    • ADC (ADVANCED D-CLASS TECHNOLOGY) ensures hi-end acoustic response with unmatched power efficiency
    • Thermally optimized double extruded heat sink featuring die-cast aluminium ergonomic terminals
    • Highly flexible crossover system allows for multichannel configurations
    • 3-Channel mode switch is provided to easily set up the amplifier for high power front speaker system + subwoofer
    • ML Power IN with balanced Speaker In inputs for an increased noise rejection and RCA In
    • Operating status real time monitoring through 4 LEDs
    • Full range Pre-out also available when using Speaker Level In inputs
    • ART (Automatic Remote Turn On-Off)
    • Optional HRC BM for subwoofer volume control

    Packaging

    Giftbox
