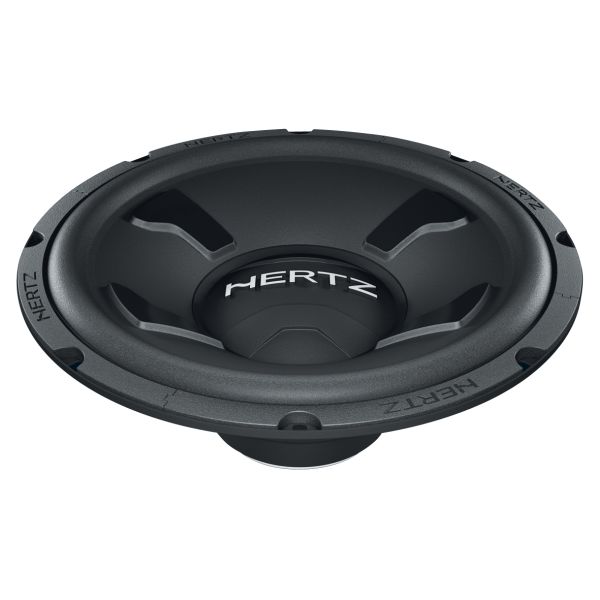

DIECI 10" 600W 4 OHM SVC SUBWOOFER (DS 25.3)
DIECI 10

DIECI 10" 600W 4 OHM SVC SUBWOOFER (DS 25.3)

Contact Us to order

    Description

    The DS 25.3 (Order Code DS25.3) car audio subwoofers offer high efficiency and exceptional power handling. Equipped with a polypropylene membrane and butyl rubber surround, they provide high excursion with minimal distortion. An efficient cooling system ensures optimal heat dissipation, increasing their reliability.

    Specifications

    • Size: 250mm (10")
    • Power Handling
      • Continuous: 150W
      • Peak: 600W
    • Impedance Ohm: 4
    • Voice Coil: 38mm (1.5")
    • Frequency Response: 32-400
    • Magnet Size (D x d x h): 100 x 50 x 25mm (4 x 2 x 1")
    • Component Weight: 3kg
    • Magnet: High Density Flux Ferrite
    • Cone: Polypropylene with Mica injection
    • Depth: 104mm (4.1")
    • Voice Coil Type: Single
    • Xmech: +/- 16mm (0.63")
    • Notes: Optional Grille available model number DSG250.3

    Features

    • Polypropylene membrane stiffened with mineral powder.
    • High excursion butyl rubber surround.
    • Deep ribbing on the surface of the cone increase rigidity.
    • Very high efficiency, with superior power handling.
    • Designed to be used in small sealed or reflex (vented) enclosures.
    • Pure copper voice coil, wound on aluminum former, for very good thermal and mechanical capacity.
    • Venting system provides better thermal dissipation and consistent performance.

    Packaging

    Giftbox
