DIECI POWER 500W 4 CHANNEL AMPLIFIER (DP 4.400)
Description
Hertz DIECI POWER amplifier DP 4.400 (Order Code DP4.400) is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.
Despite its compact size, the DP 4.400 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ohm stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.
The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 4.400, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 4.400 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 4.400 - where power, precision, and style converge for an unparalleled listening experience on the road.
Specifications
- Channels: 4, 3, 2
- Power supply voltage: 11 - 15 VDC
- Idling current (power ON/OFF): 0.85 A
- Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 30 A
- Remote In: 4-15 VDC - 1.5 mA
- Distortion - THD (100Hz at 4 Ohm): 0.01 percent
- Bandwidth: 10 - 45k Hz
- S/N Ratio (A weighted at 1V): 101 dB
- Damping factor (100Hz at 4Ohm): 130
- Pre-ln sensitivity: 0.38-8VRMS
- Load impedance (MIN): 2 Ohm (4 Channel)

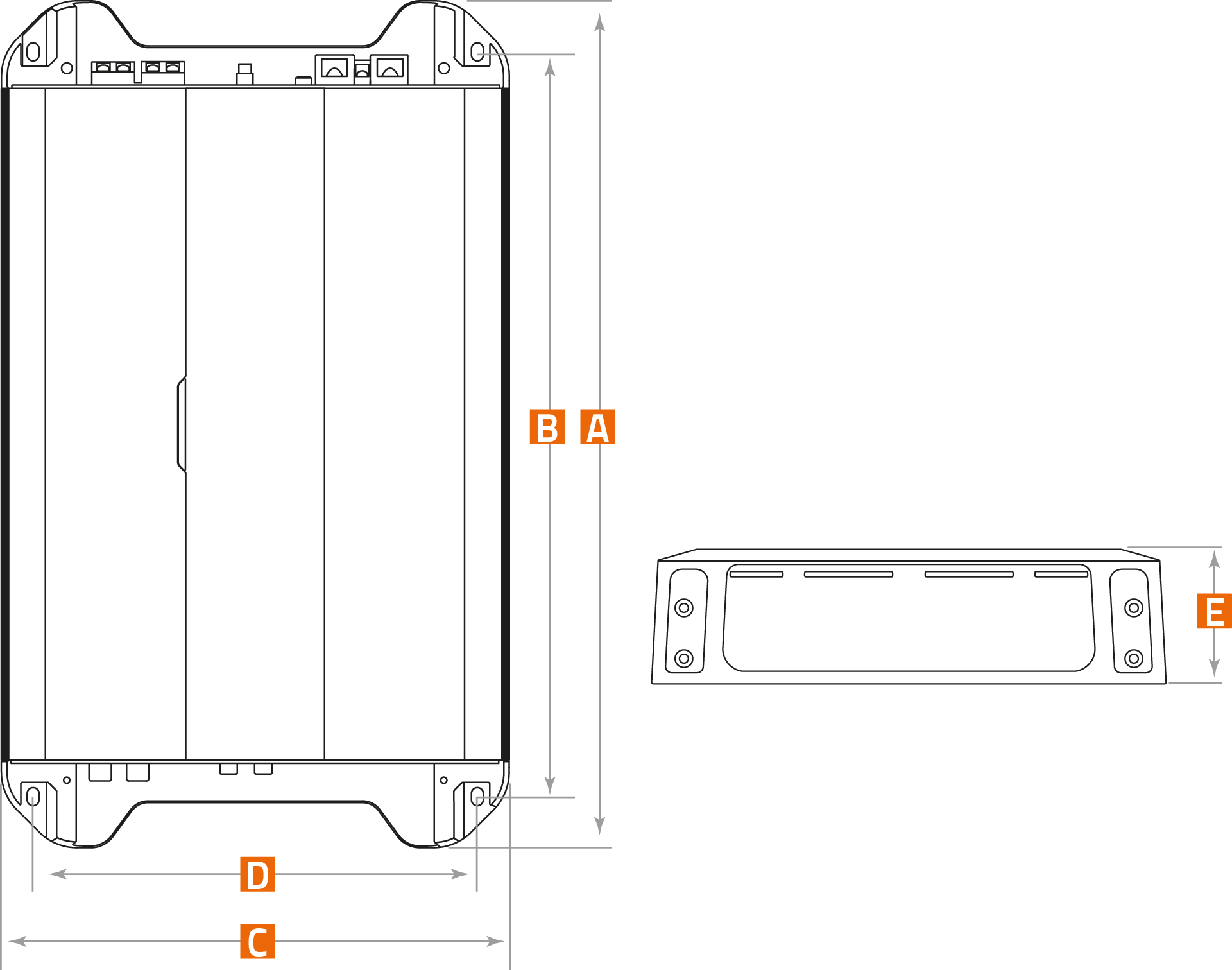

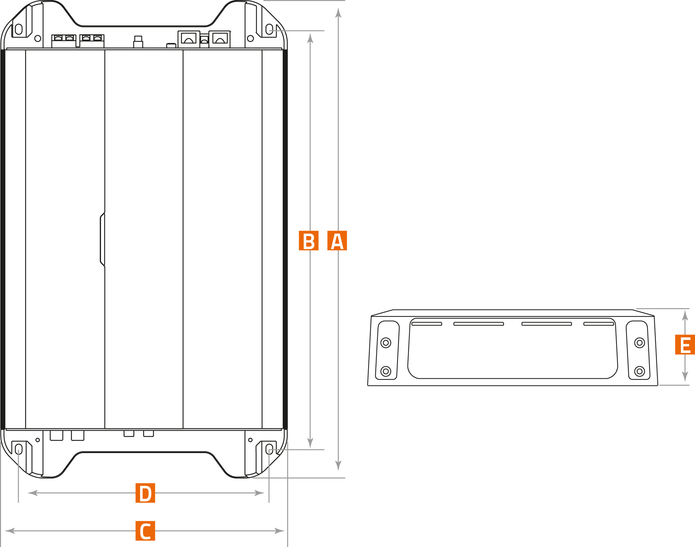

- Size: 335 x 190 x 50mm
- Weight: 2.88 kg
- Adjustable Crossovers: Yes
- Output Power (RMS) at 14.4 VDC, THD 1 Percent:
- 4Ch: 75W x 4 (4 Ohm)
- 4Ch: 105W x 4 (2 Ohm)
- 3Ch: 75W x 2 + 21W0 x 1 (4 Ohm)
- 3Ch: 105W x 2 (2 Ohm) + 210W x 1 (4 Ohm)
- 2Ch: 210 x 2 (4 Ohm)
- Total Power RMS: 500W
- Inputs and Filters:
- Inputs: Pre in and Speaker in
- Input mode: 2Ch / 4Ch
- Front Ch Filters: Hi-Pass
- Rear Ch Filters: Hi-Pass and Lo-Pass
Features
- High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz - 45 kHz.
- Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ohm stable power outputs in a small and compact design.
- Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
- Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
- High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
- Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
- Automatic Remote Turn-On/Off: driven by OEM radio speakers
- Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
