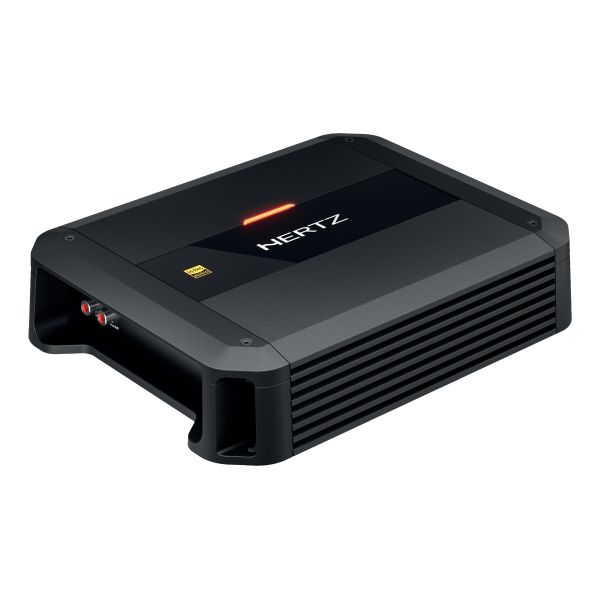

DIECI POWER 260W 2 CHANNEL AMPLIFIER (DP 2.200)

Description

Hertz DIECI POWER amplifier DP 2.200 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.

Despite its compact size, the DP 2.200 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

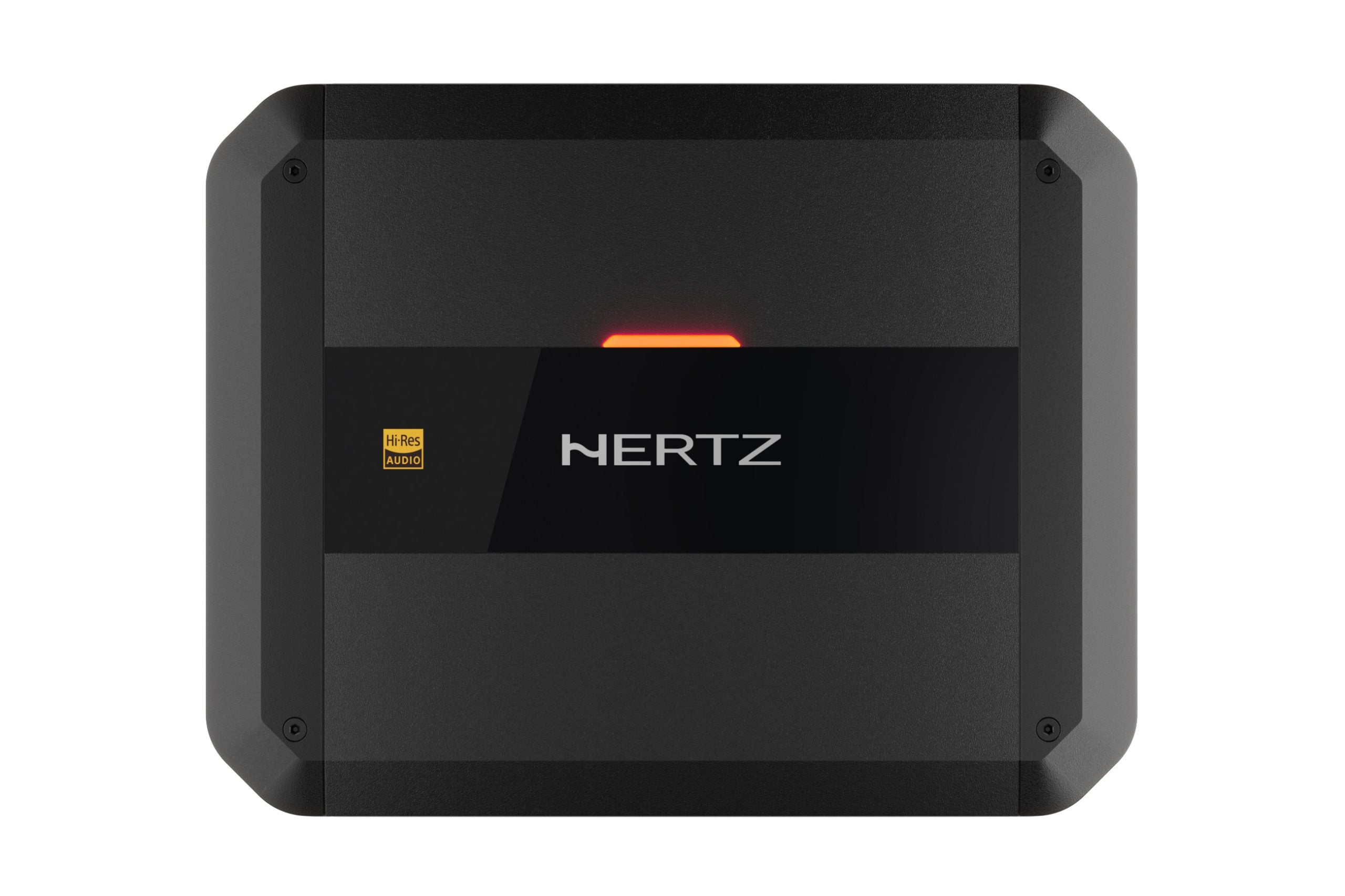

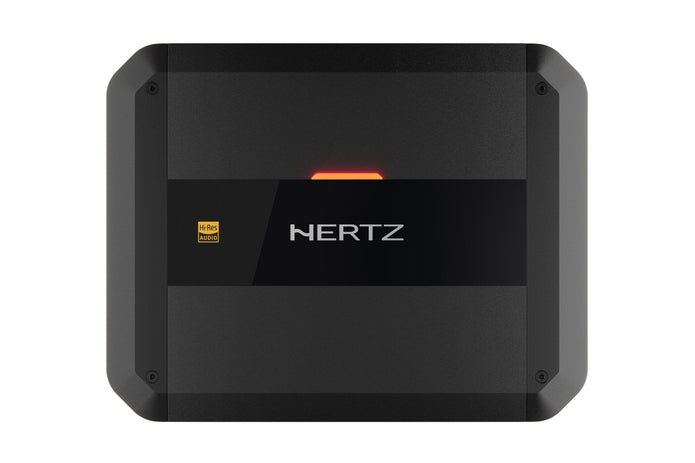

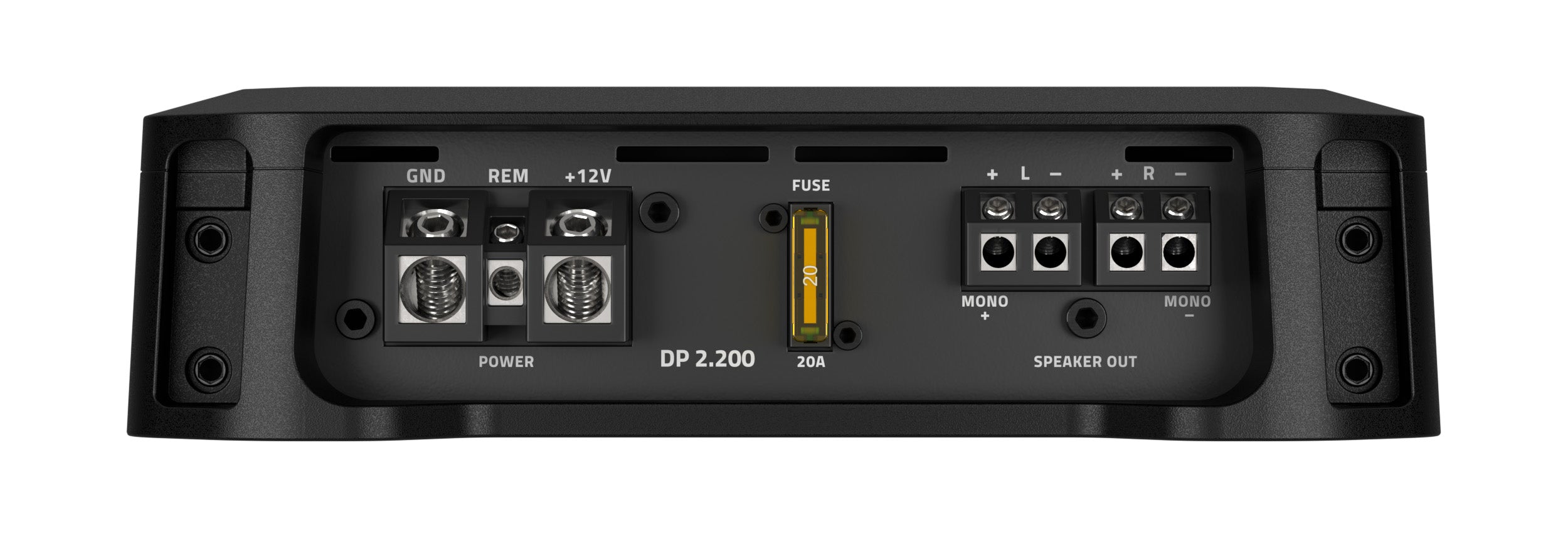

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 2.200, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

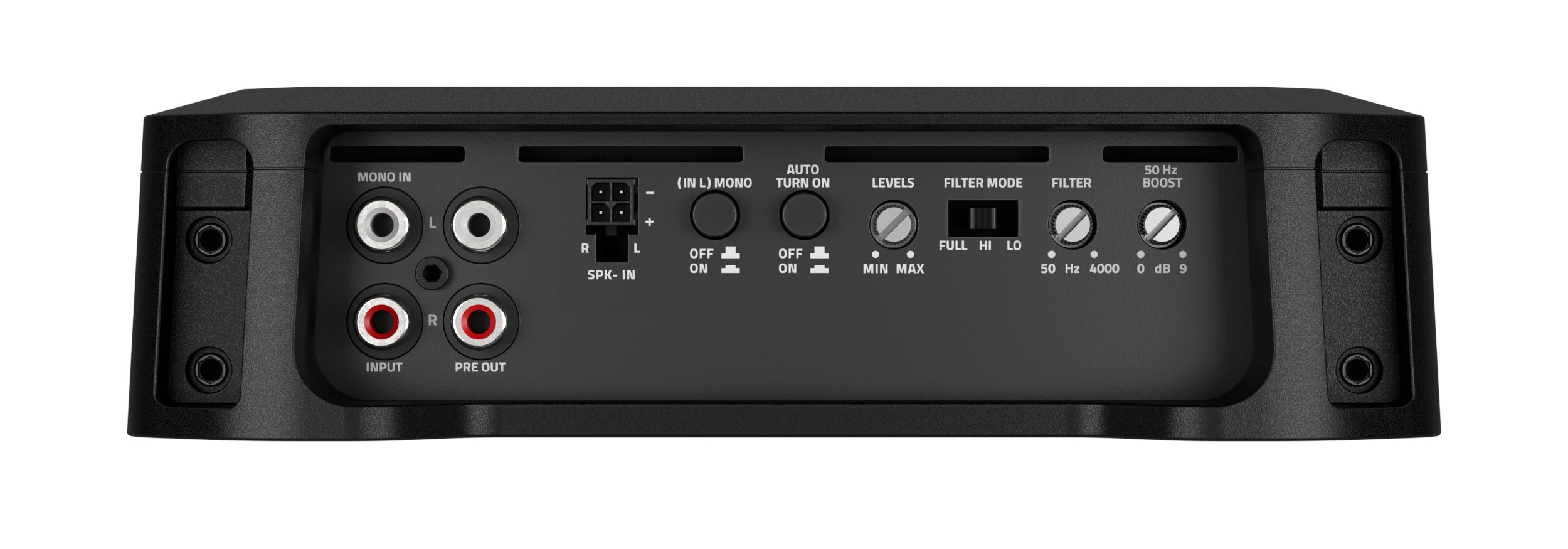

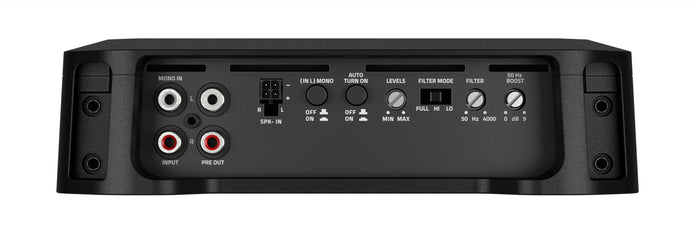

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 2.200 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 2.200 – where power, precision, and style converge for an unparalleled listening experience on the road.

Specifications

• Channels: 2, 1
• Amp Class: AB
• Power supply voltage: 11 - 15 VDC
• Idling current (power ON/OFF): 0.65 A
• Consumption at MIN load, 14.4 VDC (Max Musical Power): 15 A
• Remote In: 4-15 VDC - 1.5 mA
• Distortion - THD (100Hz at 70 percent rated power): 0.01 percent
• Bandwidth: 10 - 45k Hz
• S/N Ratio (A weighted at 1V): 100 dB
• Damping factor (1kHz at 1W): 130
• Load impedance (MIN): 2 Ohm (2 Ch) / 4 Ohm (1 Ch)

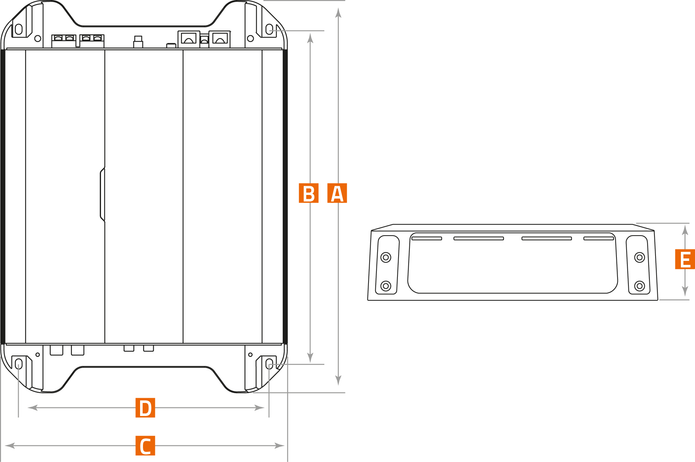

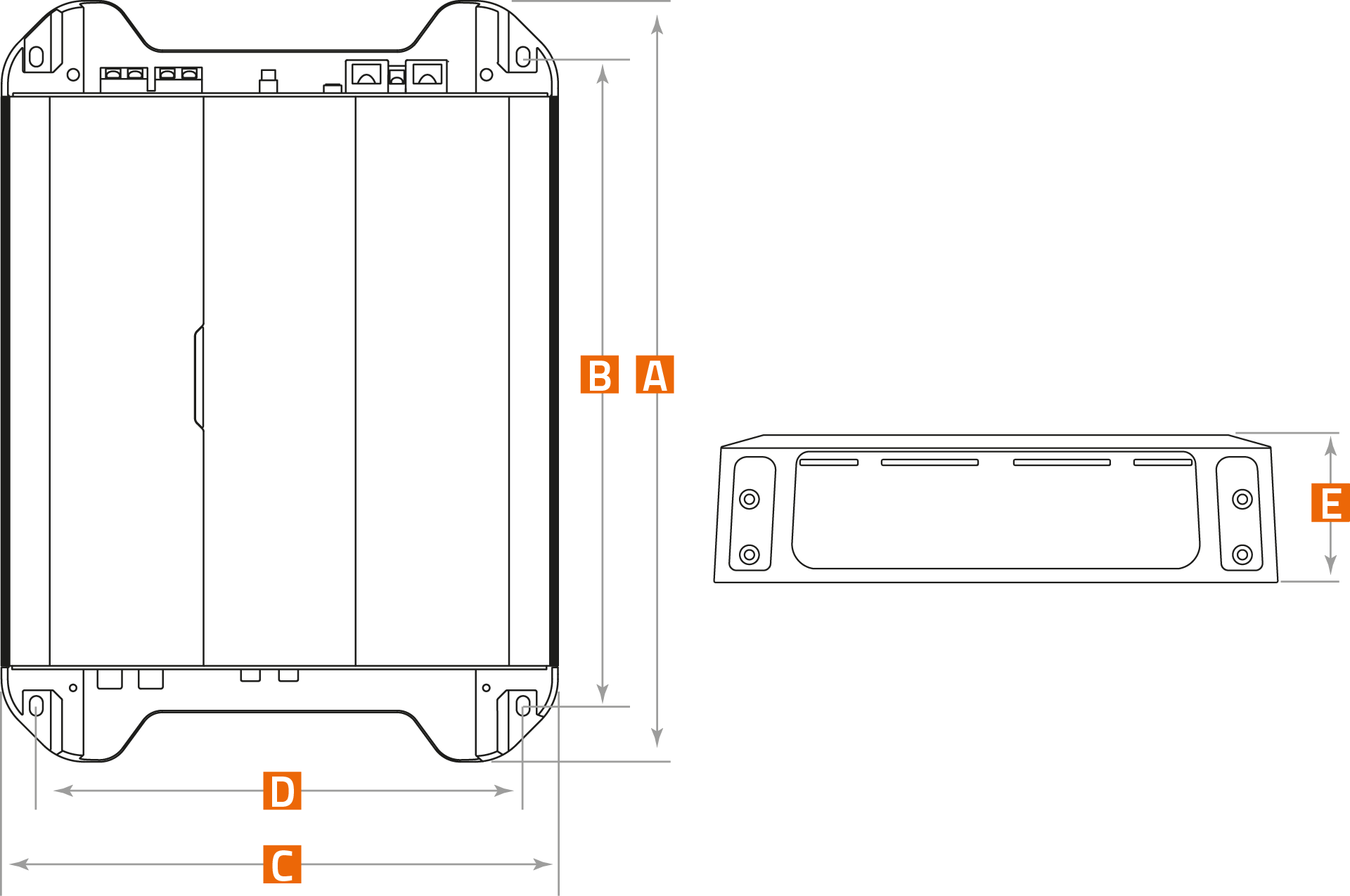

• Size: 240 x 190 x 50mm
• Weight: 1.95 kg
• Adjustable Crossovers: Yes
• Output Power (RMS) at 14.4 VDC, THD 1 Percent:
  • 2Ch: 80W x 2 (4 Ohm)
  • 2Ch: 110W x 2 (2 Ohm)
  • 1Ch: 260W x 1 (4 Ohm)
• Total Power RMS: 260W
• Inputs and Filters:
  • Inputs: Pre in and Speaker in
  • Pre-ln sensitivity: 0.32-8VRMS
  • Speaker-In sensitivity: 1.6-40VRMS
  • Hi-Pass Filter: Full / 50-4000Hz 12dB/Oct.
  • Lo-Pass Filter: Full / 50-4000Hz 12dB/Oct.
  • Bass Boost (50Hz): 0-9 dB

Features

• High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz – 45 kHz.
• Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ω stable power outputs in a small and compact design.

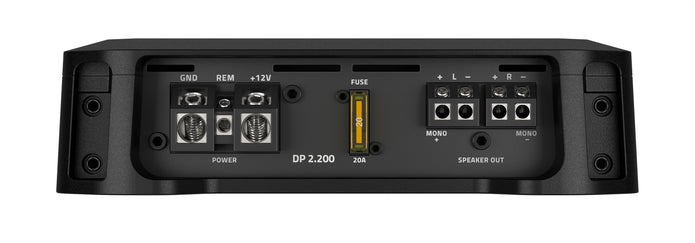

• Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
• Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
• High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
• Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
• Automatic Remote Turn-On/Off: driven by OEM radio speak
• Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
