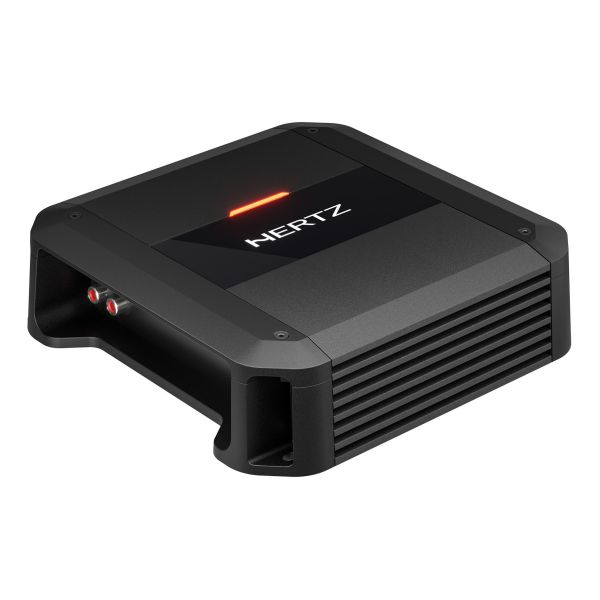

DIECI POWER 590W 1 CHANNEL AMPLIFIER (DP 1.500)
Description
Hertz DIECI POWER DP 1.500 (Order Code DP1.500) Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.
Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ohm stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

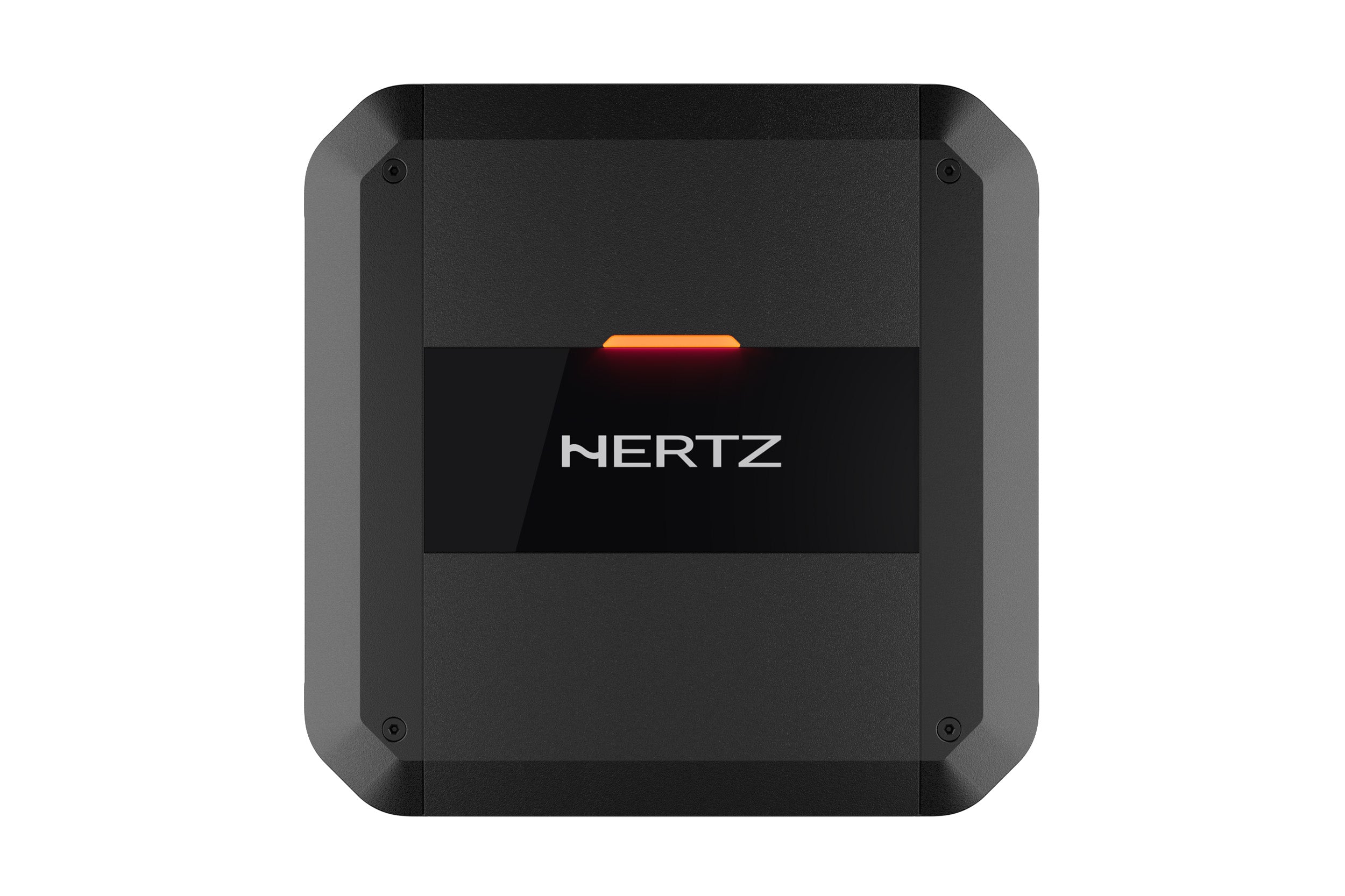

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 - 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.
Specifications
- Channels: 1
- Power supply voltage: 11 - 15 VDC
- Idling current (power ON/OFF): 1 A
- Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 21 A
- Remote In: 4-15 VDC - 1 mA
- Distortion - THD (100Hz at 4 Ohm): 0.2 percent
- Bandwidth: 10 - 500 Hz
- S/N Ratio (A weighted at 1V): 99 dB
- Damping factor (100Hz at 4Ohm): 180
- Pre-ln sensitivity: 0.32-8VRMS
- Load impedance (MIN): 2 Ohm

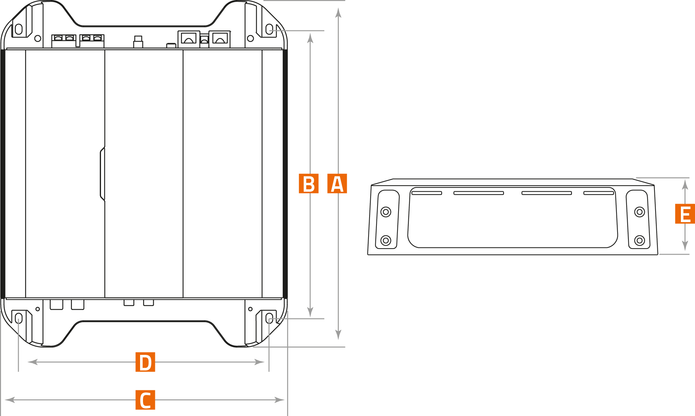

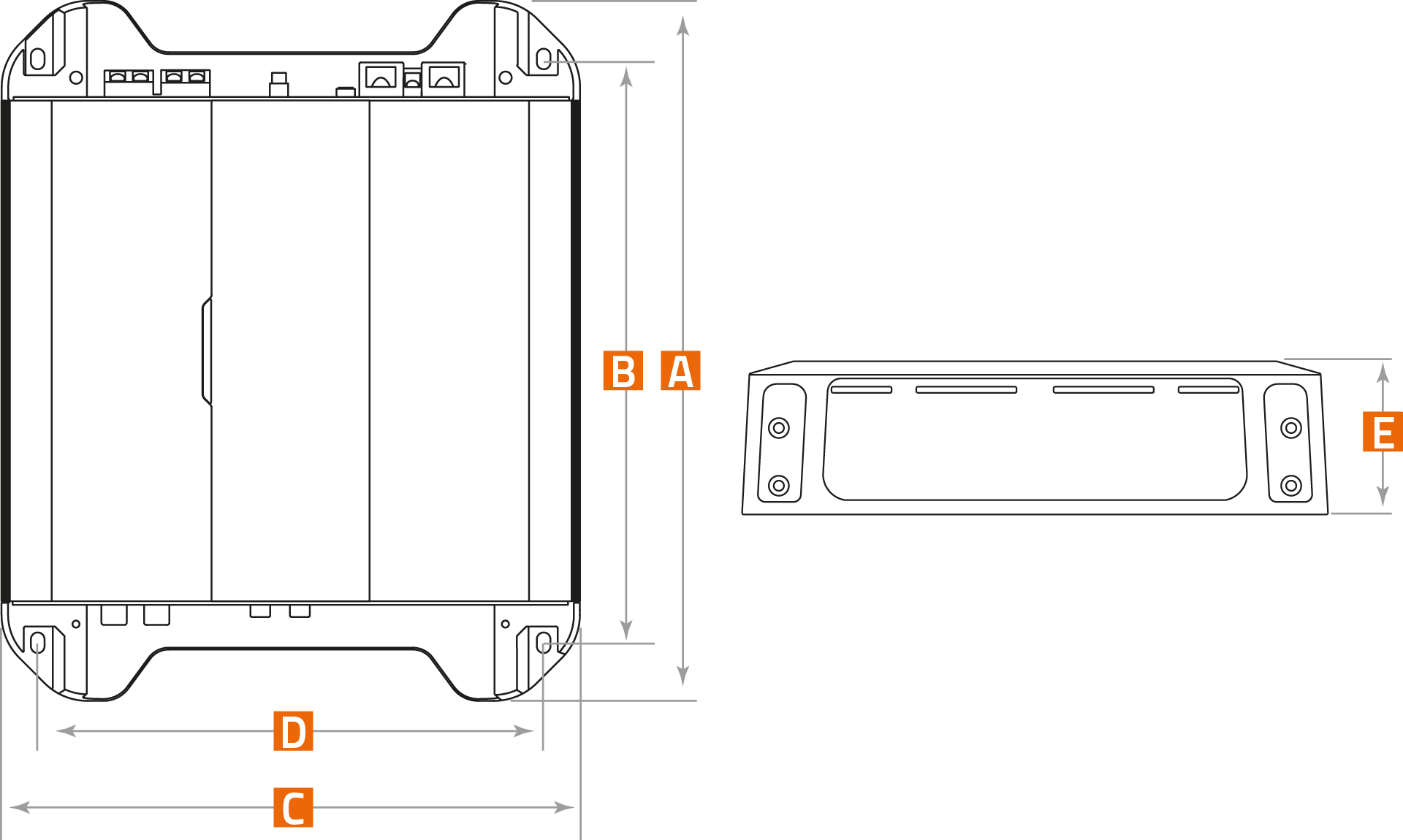

- Size: 190 x 190 x 50mm
- Weight: 1.62 kg
- Adjustable Crossovers: Yes
- Output Power (RMS) at 14.4 VDC, THD 1 Percent:
- 1Ch: 280 x 1 (4 Ohm)
- 1Ch: 500 x 1 (2 Ohm)
- Total Power RMS: 590W
- Inputs and Filters:
- Inputs: Pre in and Speaker in
- Pre out full range: Yes
- Filters Full: Yes
- Notes: Compatible bass controller is HRC 02 (Sold Separately)
Features
- Maximum Power in Compact Size: ADC (Advanced Class-D) 2Ohm stable power output in a small and compact design.

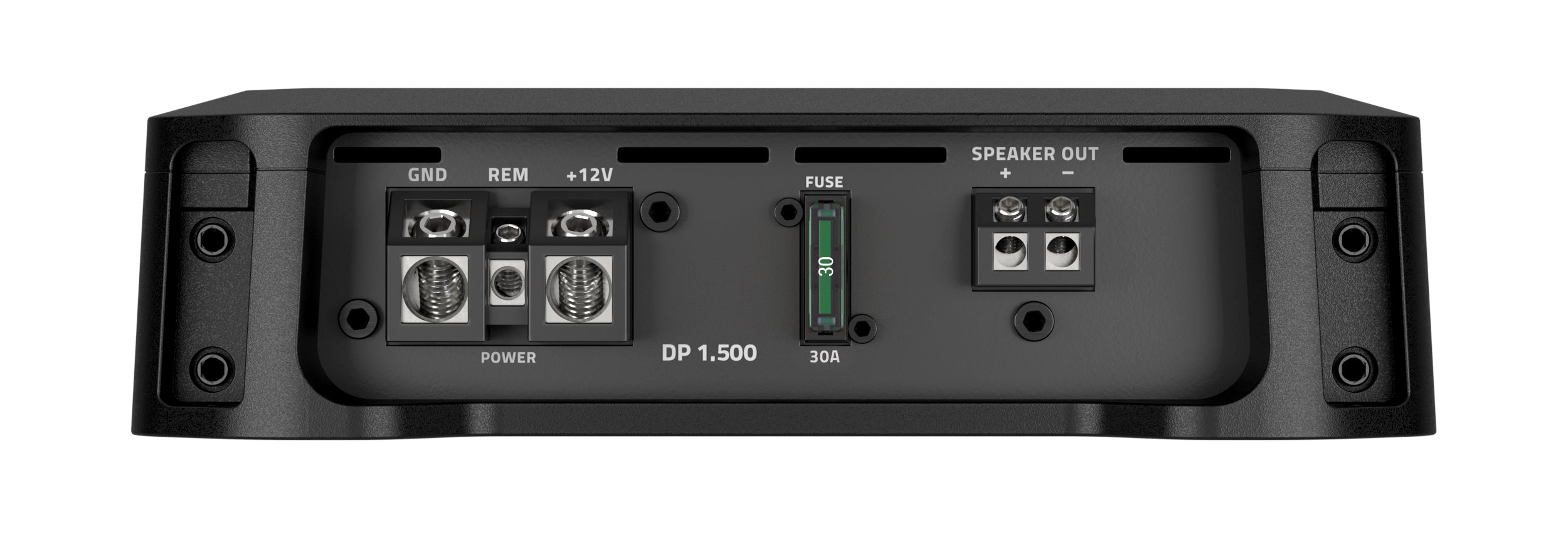

- Attractive Design: elegant status LED, solid machined terminal block, and removable top panel to protect controls and connections.
- Universal Compatibility: operating supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
- High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.

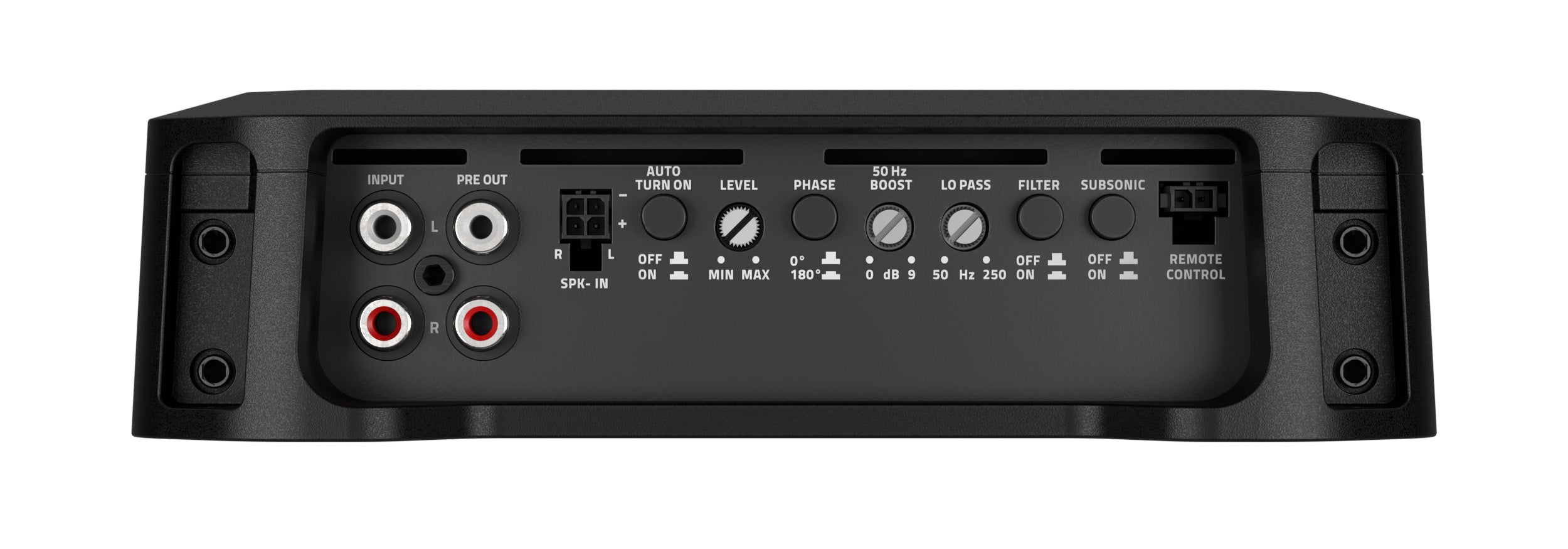

- Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
- Automatic Remote Turn-On/Off: driven by OEM radio speaker outputs.
- Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
