DIECI 12" 1000W 4 OHM SVC LOADED SUBWOOFER BOX (DBX 30.3)

Description

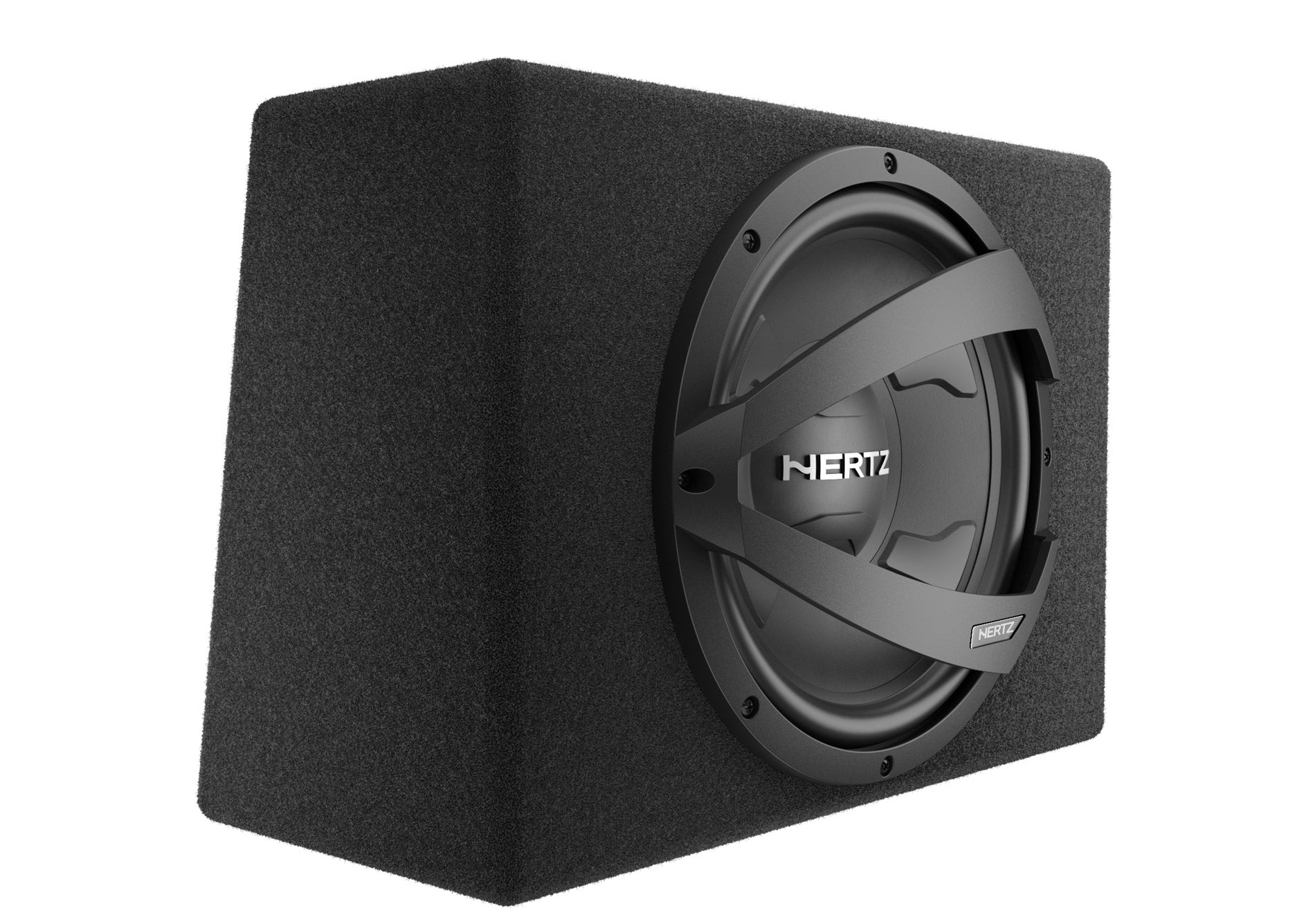

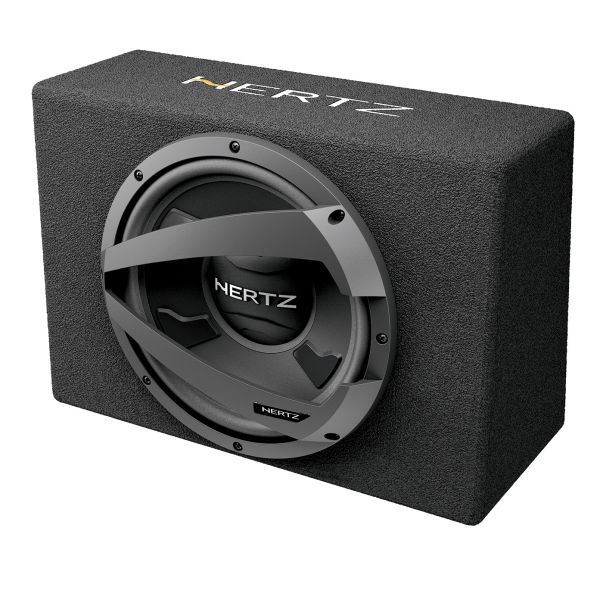

The Hertz Dieci DBX 30.3 (Order Code DBX30.3) 12" (300mm) sealed car audio subwoofer box is designed to enhance the audio system performance in the low range frequencies, optimizing the spaces and ensuring a quick, not too invasive installation. The subwoofer unit, which is the DS sub, provides a punching, dynamic, surrounding bass. The very thick MDF enclosure, thanks to its rigid and stable structure, does not affect the acoustics. The rear slanted panel fulfils two important functions: it reduces back-wave reflections and eases the installation.

Specifications

• Size: 300mm (12")
• Power Handling
  • Continuous: 250W
  • Peak: 1000W
• Impedance Ohm: 4
• Voice Coil: 38mm (1.5")
• Frequency Response: 28-300 Hz
• Sensitivity: 91 dB
• Magnet Size (D x d x h): 115 x 50 x 25mm (4.5 x 2 x 1")
• Component Weight: 8.4kg
• Magnet: High Density Flux Ferrite
• Cone: Polypropylene with Mica injection
• Voice Coil Type: Single
• Xmech: +/- 16mm (0.63")

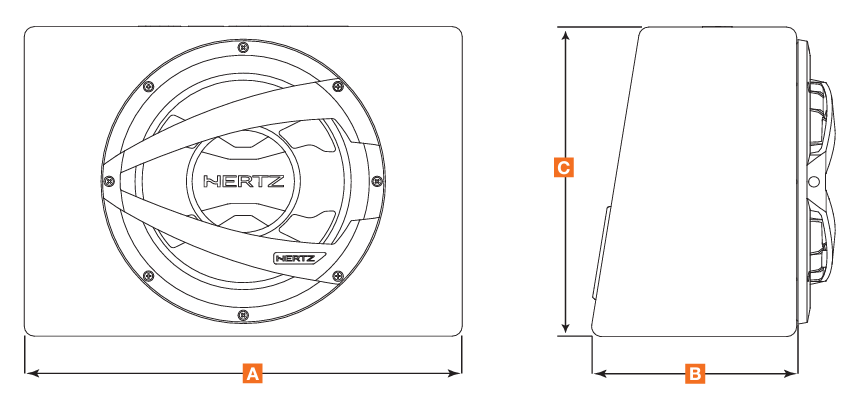

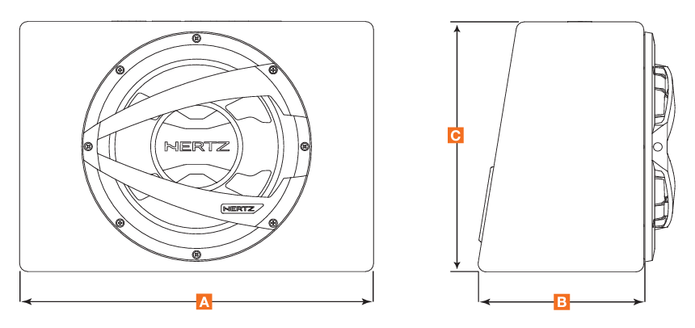

• Dimensions:
  • Width 484 mm
  • Depth 227 mm
  • Height 343 mm

Features

• Very high efficiency subwoofer system with superior power handling
• Very thick MDF cabinet construction, strong and inert

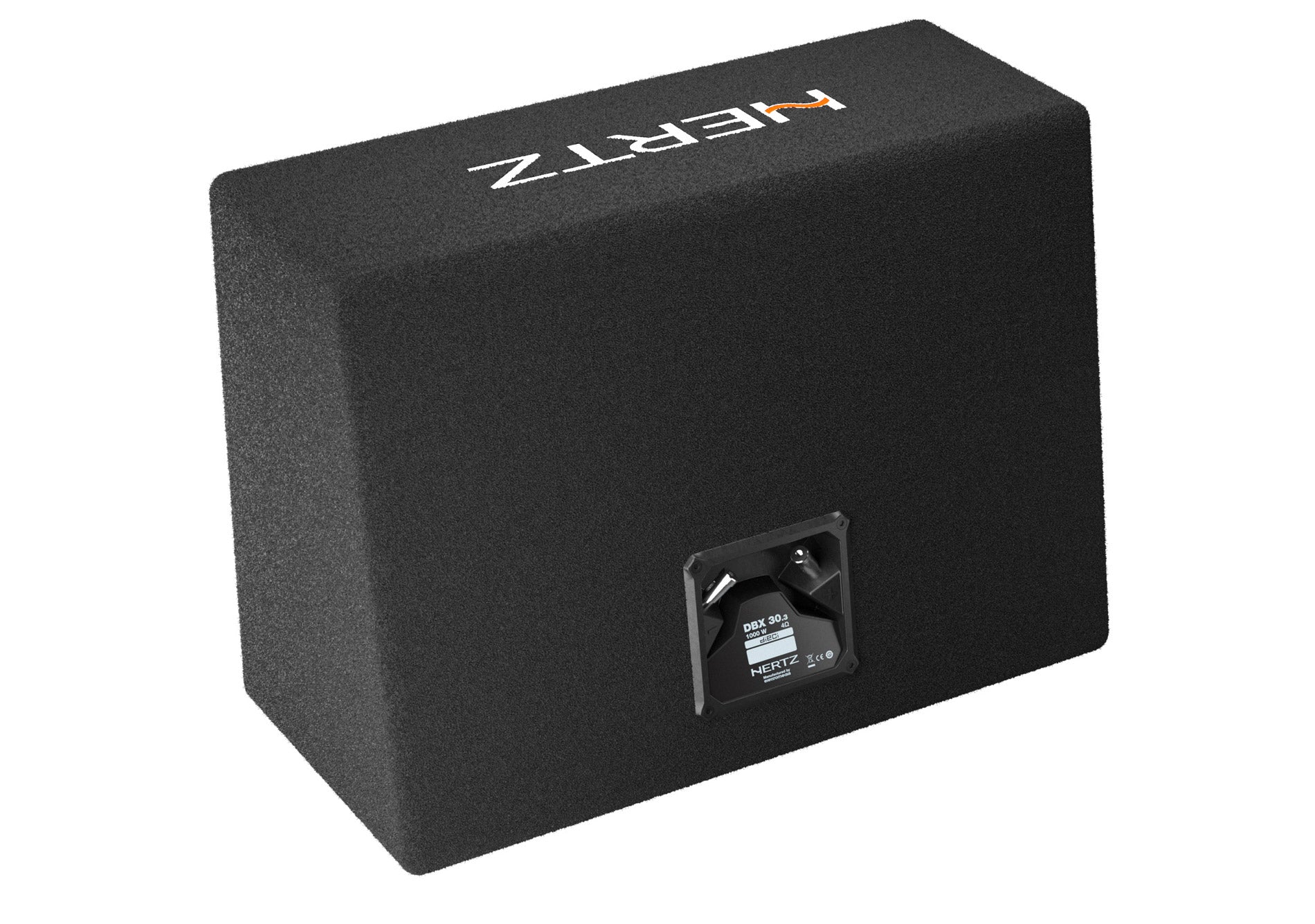

• Angled rear wall, increases damping of resonances and provides easy fitment in any application
• High current plated terminals
• Polypropylene membrane stiffened with mineral powders
• High excursion butyl rubber surround
• Deep ribbing on the surface of the cone increase rigidity

Packaging

Giftbox
