DIECI 10 DIECI 10 DIECI 10
DIECI 10" 600W 4 OHM SVC LOADED SUBWOOFER BOX (DBX 25.3)
DIECI 10
DIECI 10

DIECI 10" 600W 4 OHM SVC LOADED SUBWOOFER BOX (DBX 25.3)

Contact Us to order

    Description

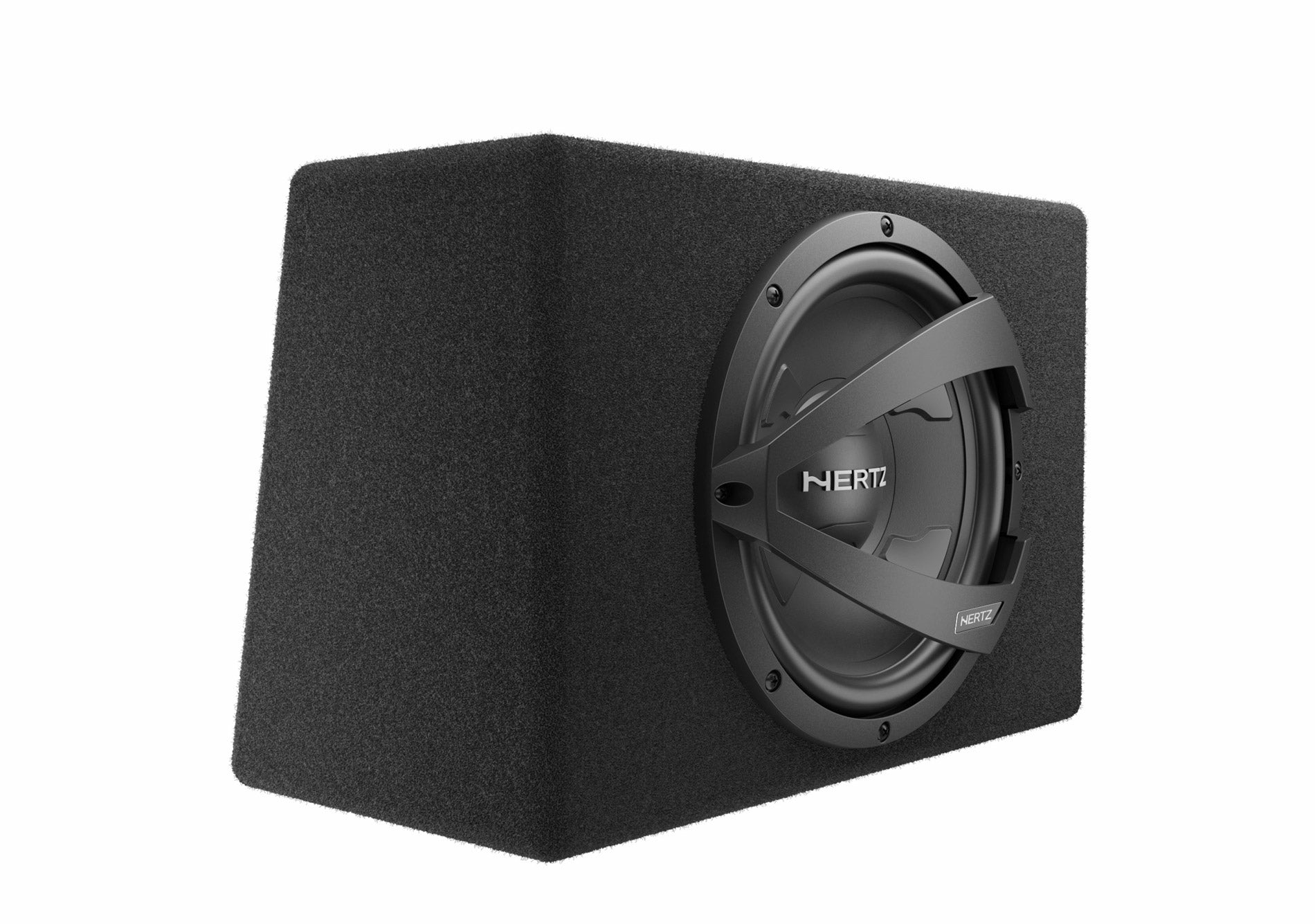

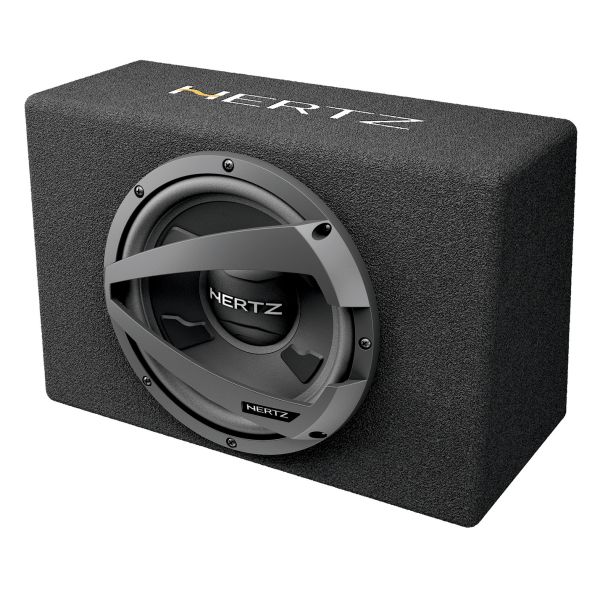

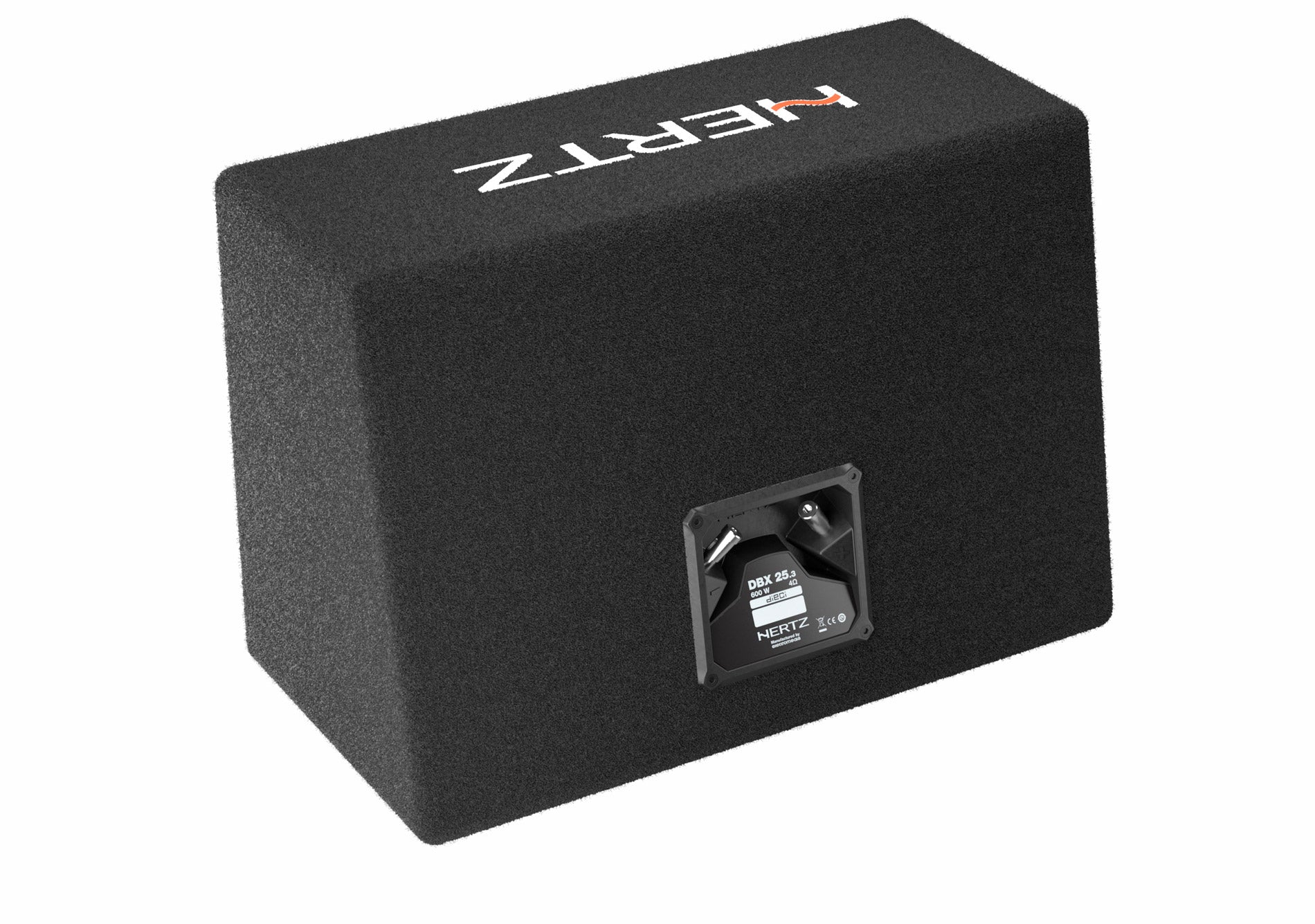

    The Hertz Dieci DBX 25.3 (Order Code DBX25.3) 10" (250mm) sealed car audio subwoofer box is designed to enhance the audio system performance in the low range frequencies, optimising the space and ensuring a quick, not too invasive installation. The subwoofer unit, which is the DS sub, provides a punching, dynamic, surrounding bass. The very thick MDF enclosure, thanks to its rigid and stable structure, does not affect the acoustics. The rear slanted panel fulfils two important functions: it reduces back-wave reflections and eases the installation.

    Specifications

    • Size: 250mm (10")
    • Power Handling
      • Continuous: 150W
      • Peak: 600W
    • Impedance Ohm: 4
    • Voice Coil: 38mm (1.5")
    • Frequency Response: 32-400 Hz
    • Sensitivity: 89 dB
    • Magnet Size (D x d x h): 100 x 50 x 25mm (4 x 2 x 1")
    • Component Weight: 6.9kg
    • Magnet: High Density Flux Ferrite
    • Cone: Polypropylene with Mica injection
    • Voice Coil Type: Single
    • Xmech: +/- 16mm (0.63")
    • Dimensions:
      • Width 443 mm
      • Depth 227 mm
      • Height 298 mm

    Features

    • Very high efficiency subwoofer system with superior power handling
    • Very thick MDF cabinet construction, strong and inert
    • Angled rear wall, increases damping of resonances and provides easy fitment in any application
    • High current plated terminals
    • Polypropylene membrane stiffened with mineral powders
    • High excursion butyl rubber surround
    • Deep ribbing on the surface of the cone increase rigidity

    Packaging

    Giftbox
