DIECI 8" 440W ACTIVE LOADED SUBWOOFER BOX (DBA 201)

Contact Us to order

    Description

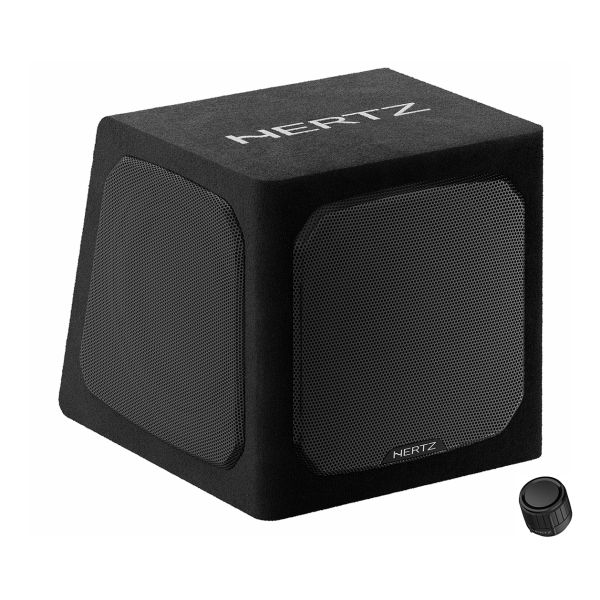

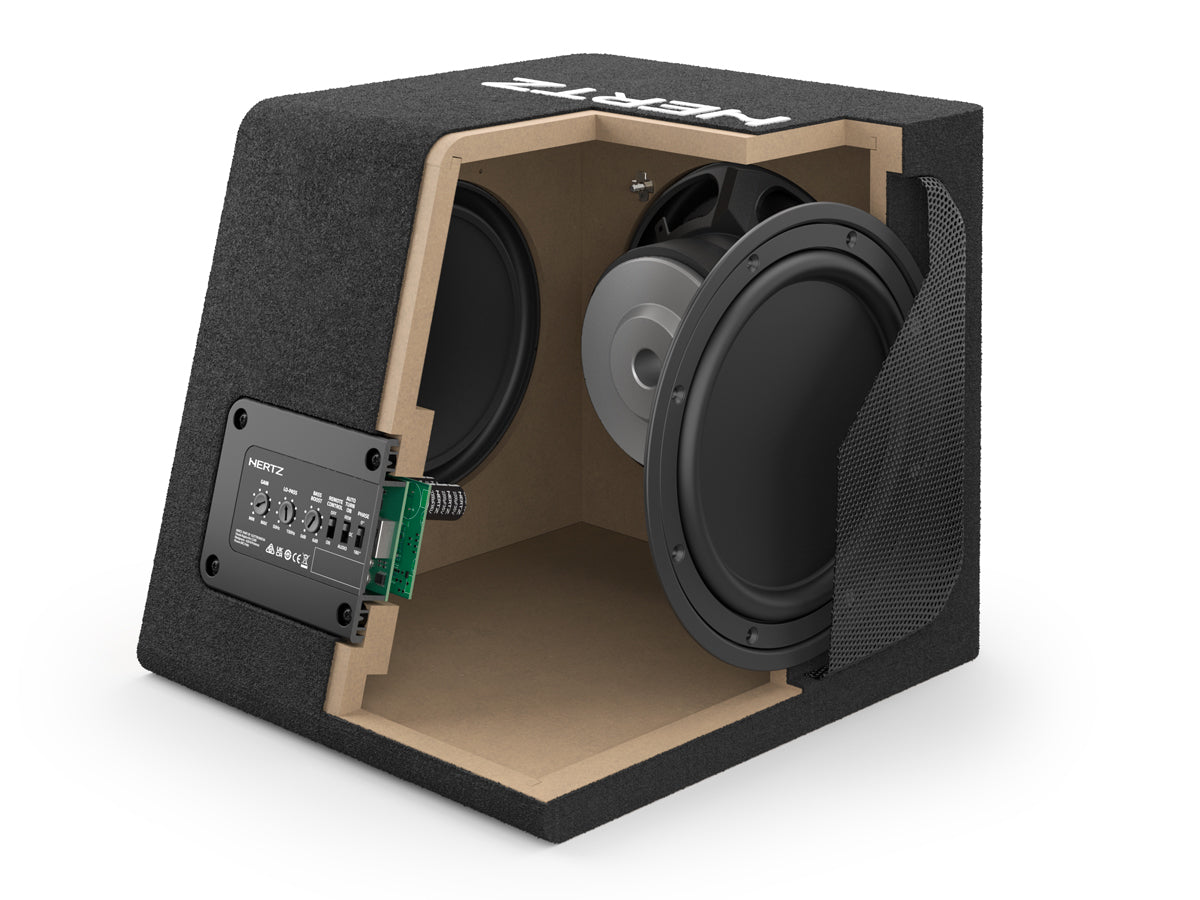

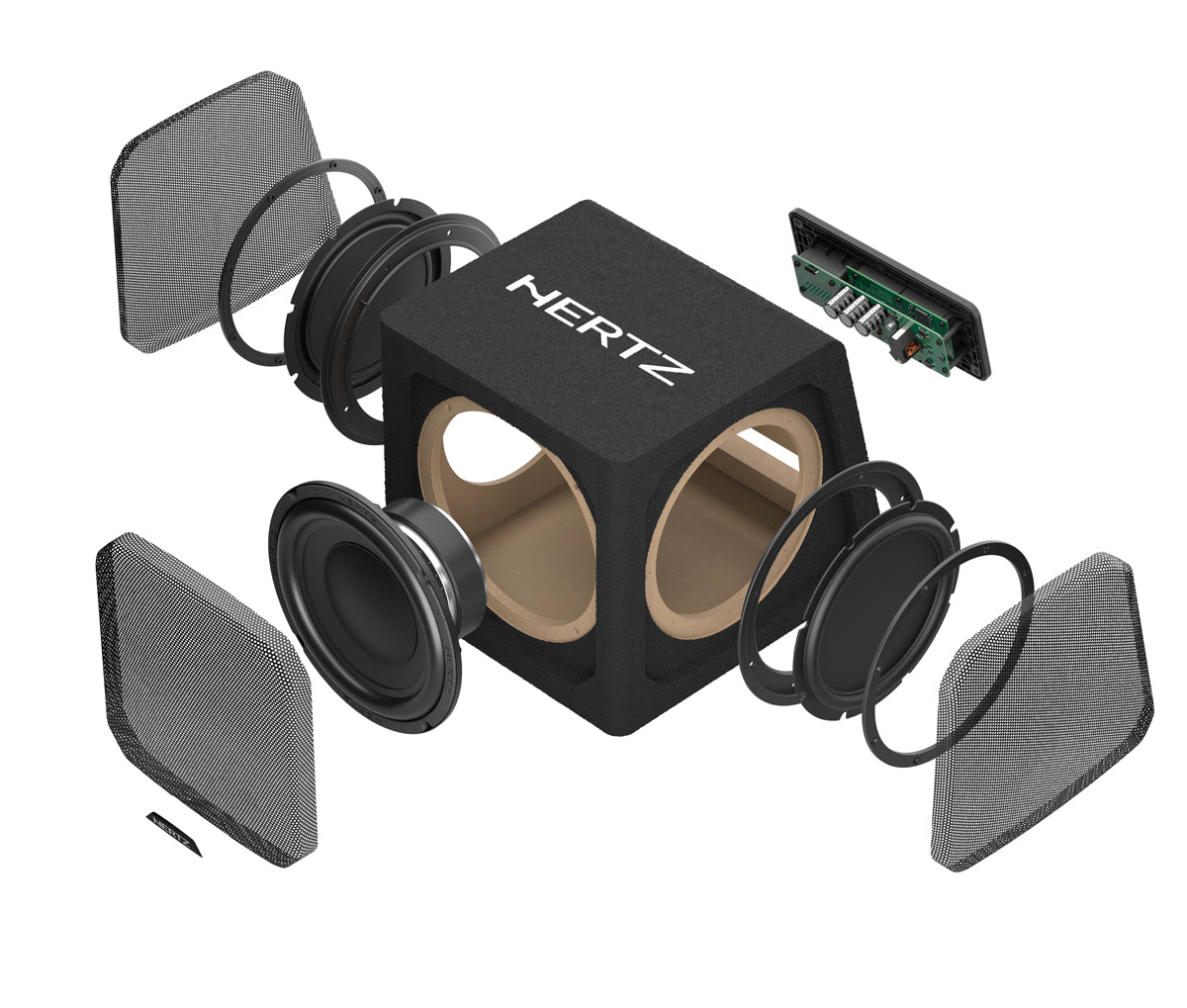

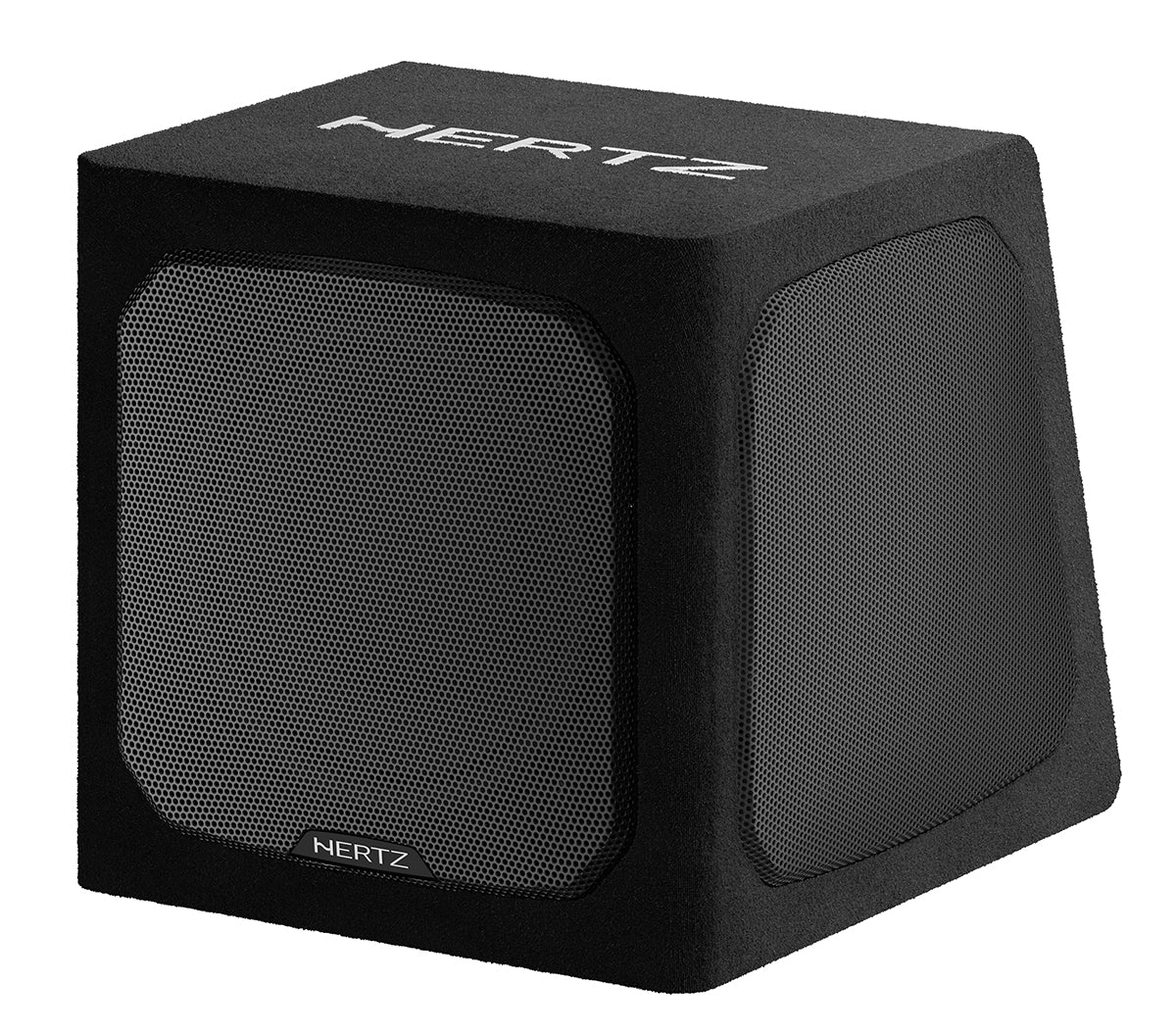

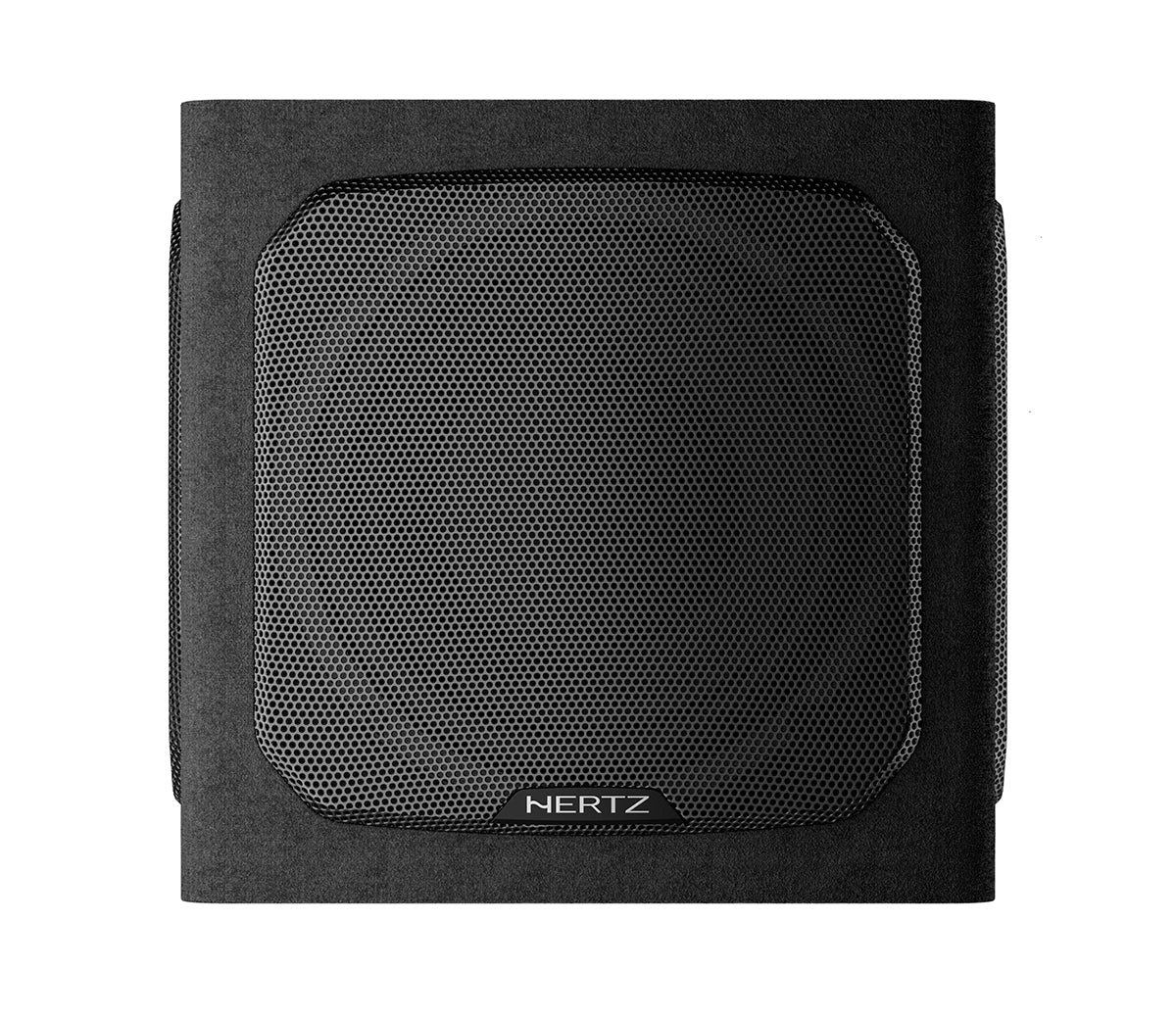

    The DBA 201 (Order Code DBA201) active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8" driver provides optimal control during the highest cone excursion.

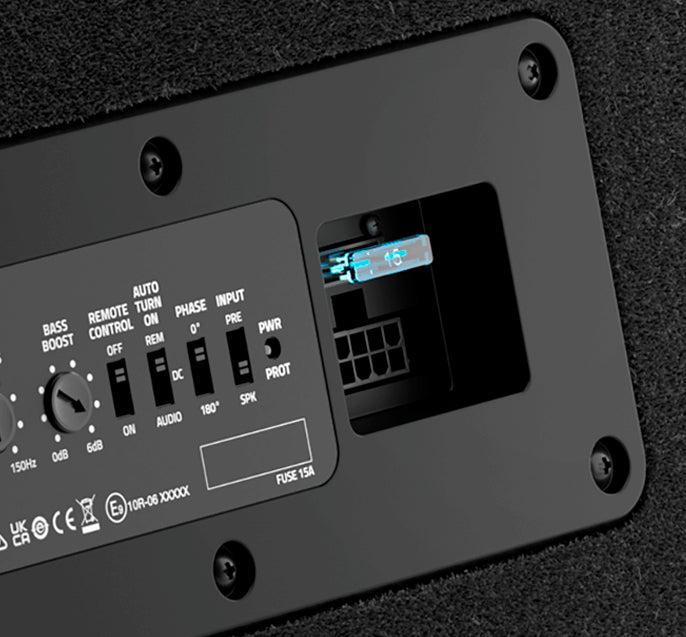

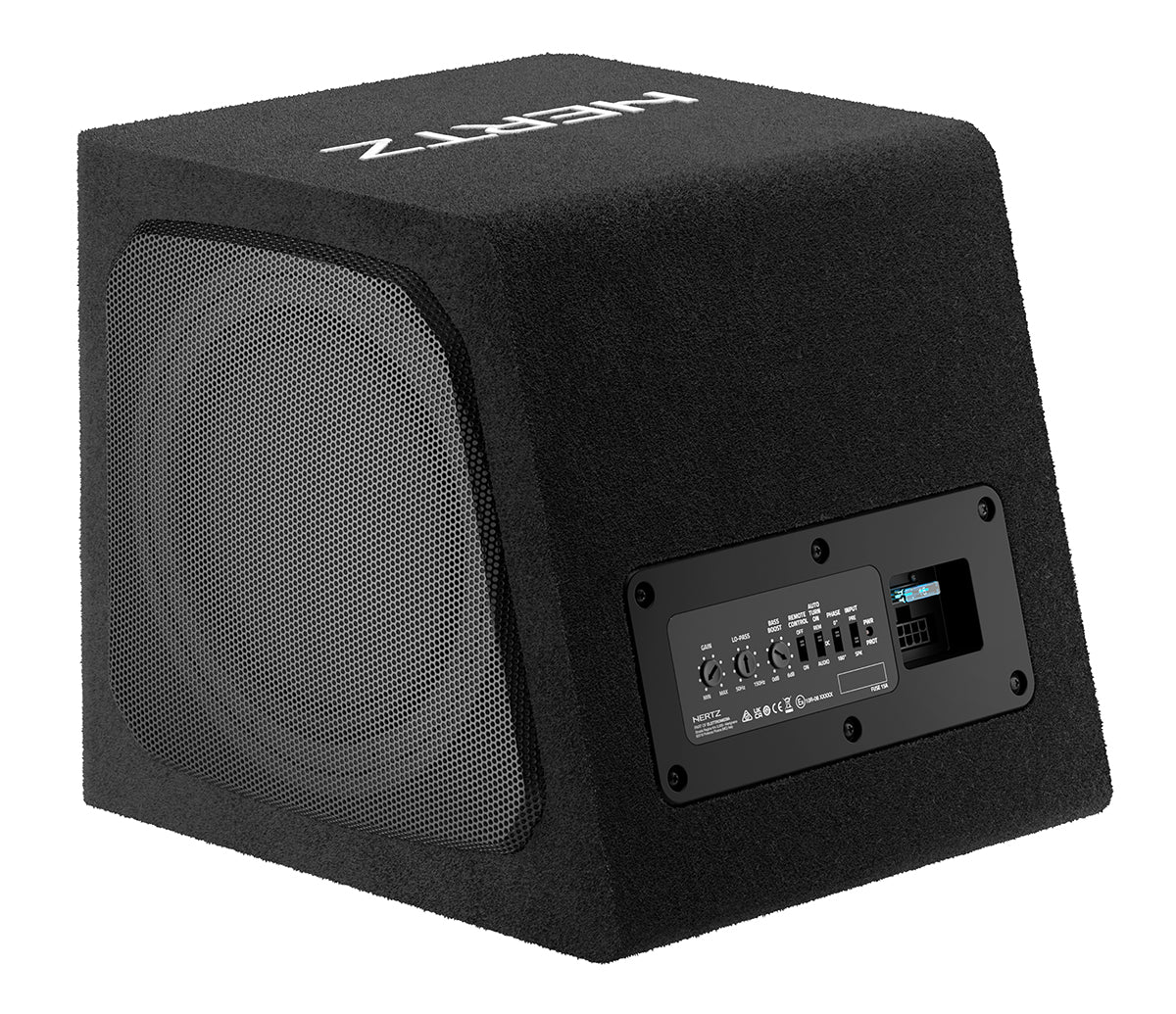

    The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50-150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180 degrees), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

    The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

    Specifications

    • Woofer Size: 200mm (8")
    • Power Handling
      • Continuous: 220W
      • Peak: 440W
    • Impedance Ohm: 0.4
    • Voice Coil: 38.6mm (1.5")
    • Frequency Response: 32 - 400 Hz
    • Magnet Size (D x d x h): 115 x 47 x 25mm
    • Component Weight: 6.7kg
    • Magnet: High Density Flux Ferrite
    • Cone: Pressed Paper
    • Power supply voltage: 6.5 - 18 VDC
    • Idling current (power ON/OFF): 260 mA / 1 mA
    • Consumption at 14.4 VDC (Max Musical Power): 8.5 A
    • Remote In: 4-15 VDC - 1 mA
    • Distortion - THD (100Hz at 4 Ohm): 0.15 percent
    • Bandwidth: 15 - 150 Hz
    • S/N Ratio (A weighted at 1V): 100 dB
    • Pre-ln sensitivity: 0.2-5VRMS
    • Lo-Pass: 50-150 Hz
    • Phase Switch: Yes
    • Remote Control: 0 to -15dB

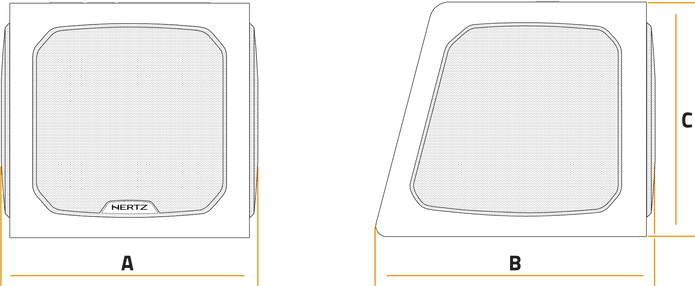

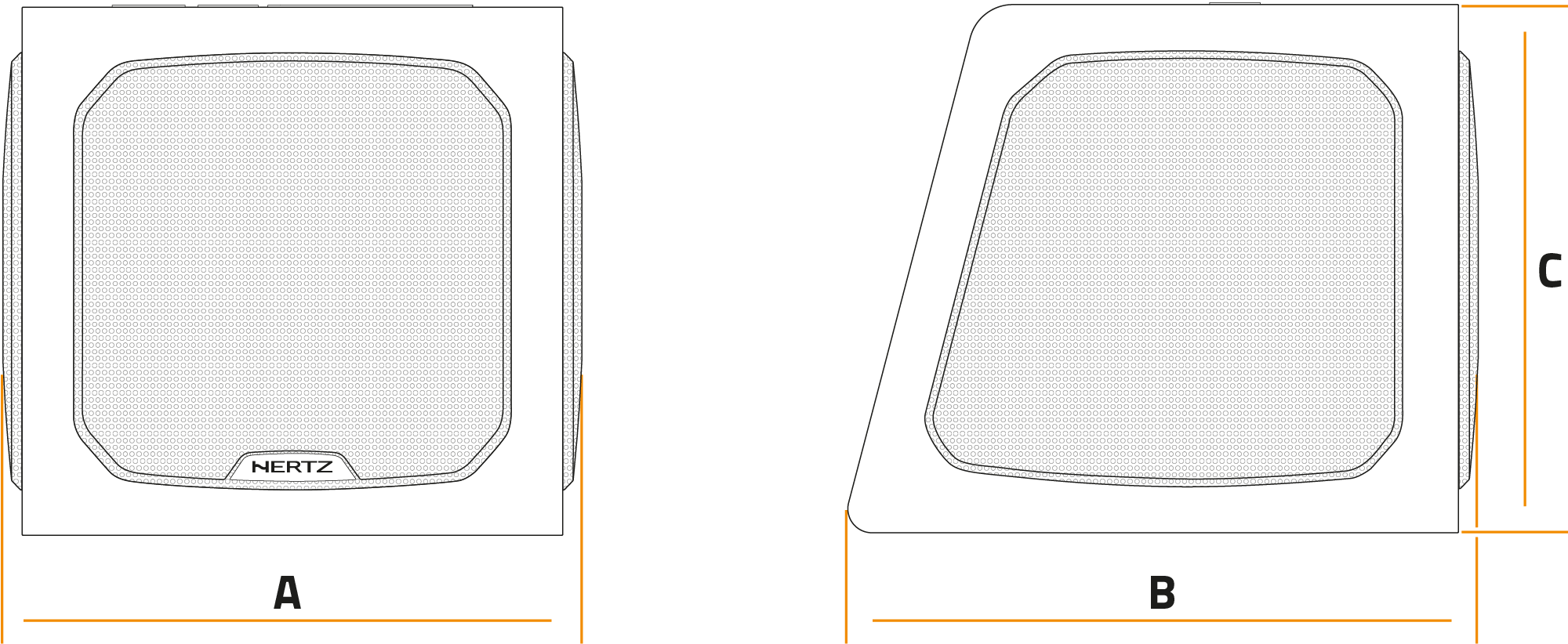

    • Unit Measurements: 291 x 315 x 264mm (W x D x H)

    Features

    • High performance in a compact stylish design
    • 440-watt peak Class D amplifier
    • Compatible with every car audio system
    • Plug & Play connection
    • Extra full set of controls to fine-tune the in-car performance
    • Auto turn-on and standby mode

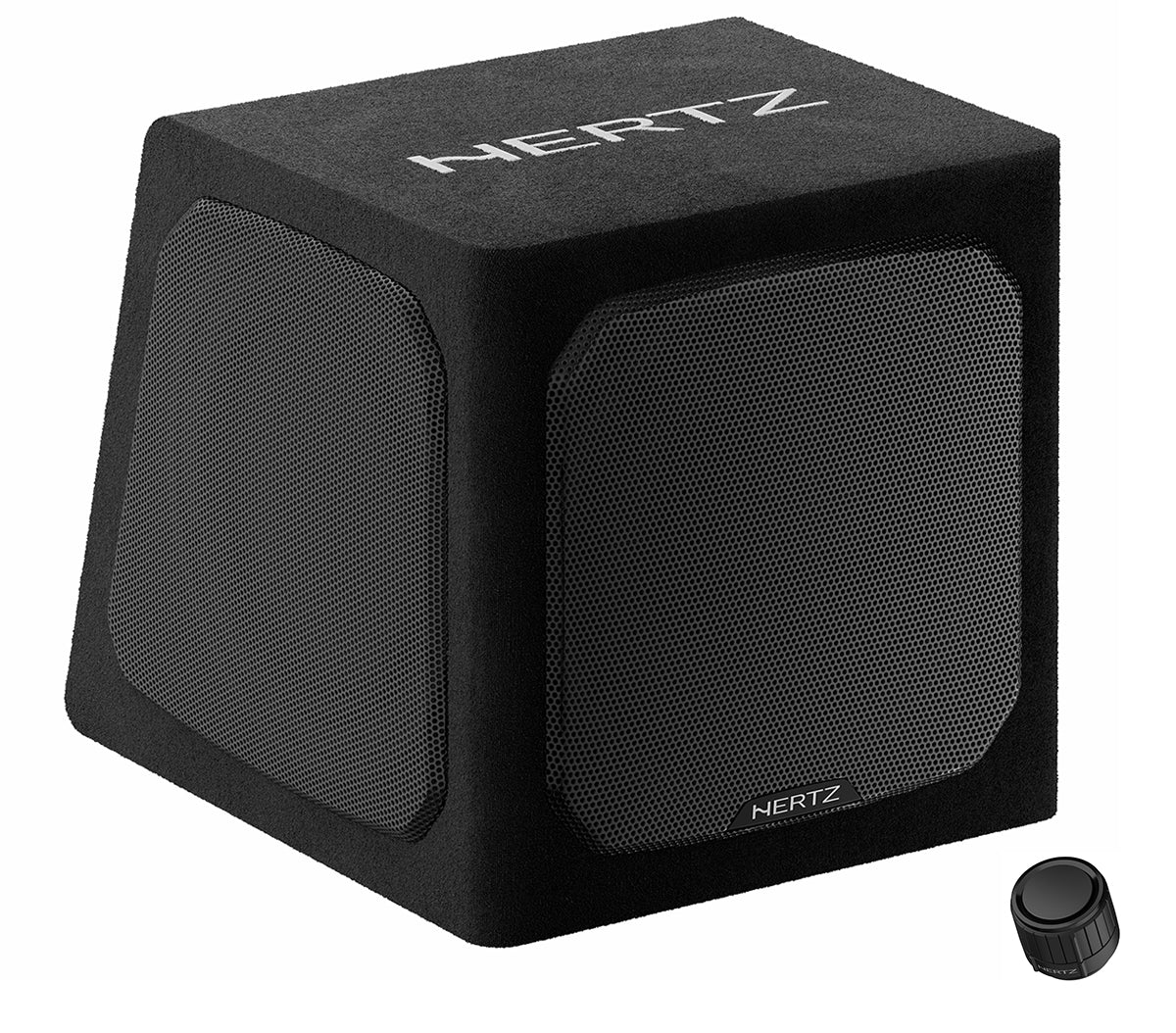

    • Provided remote-level control
