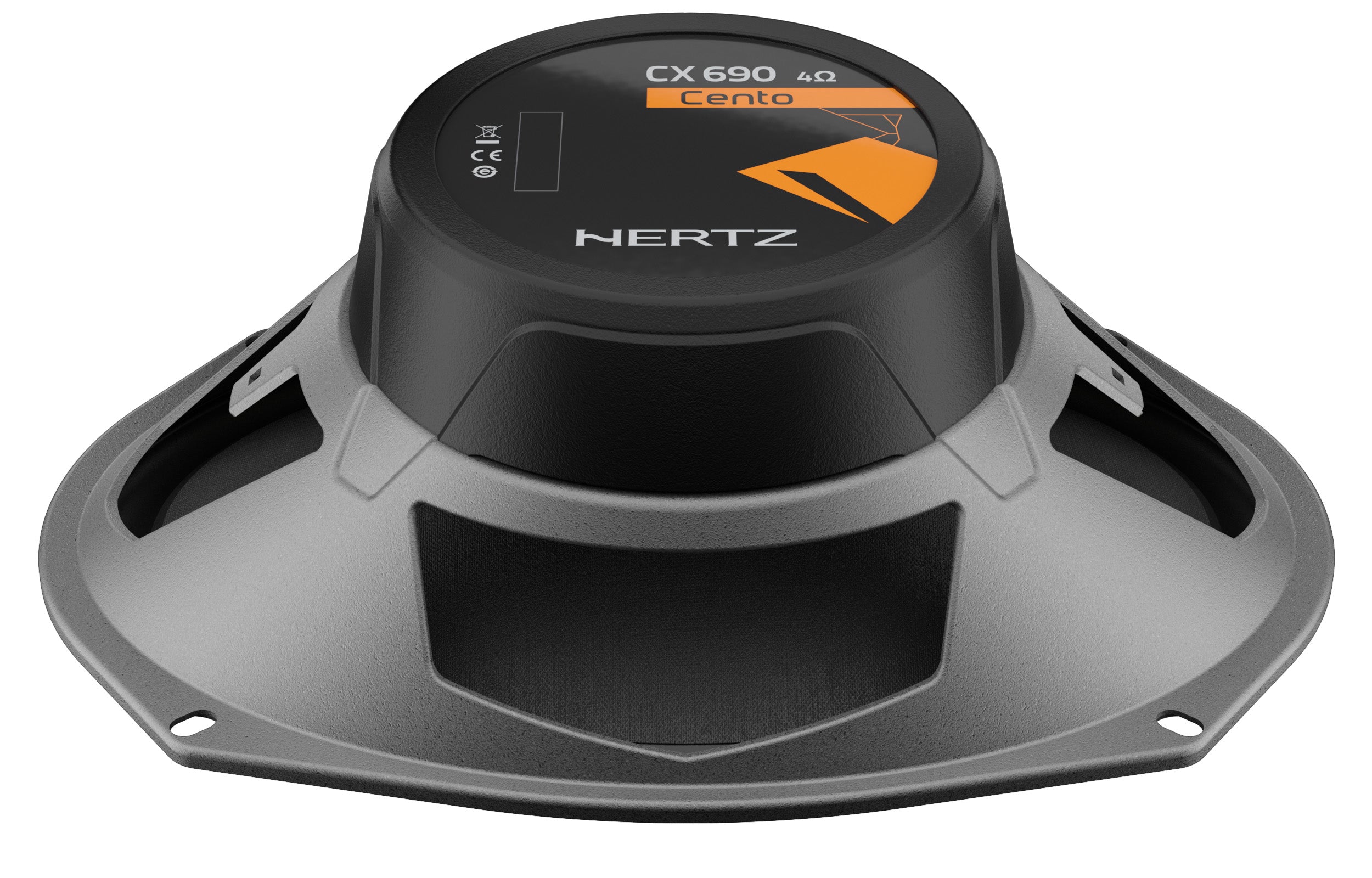

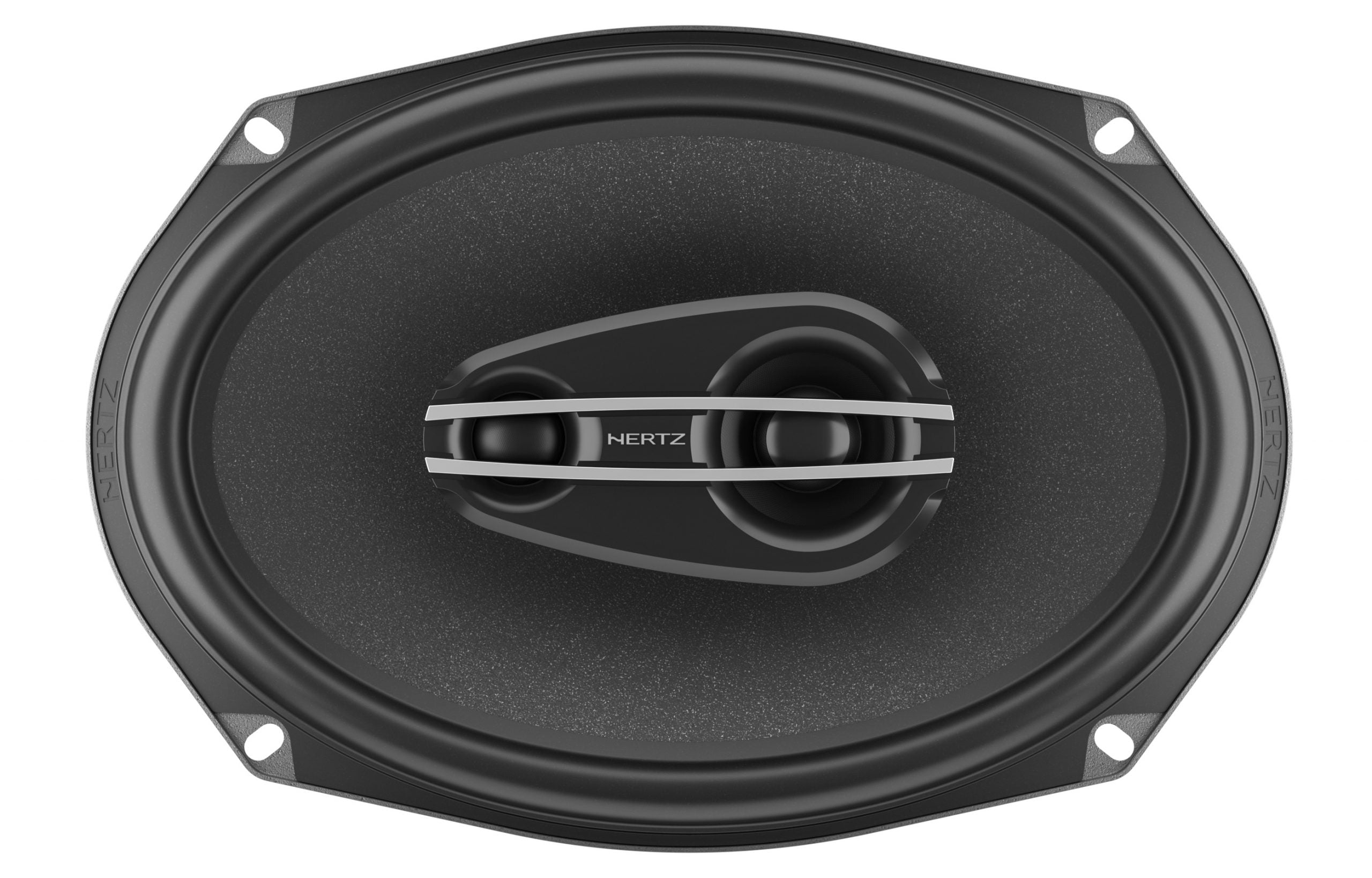

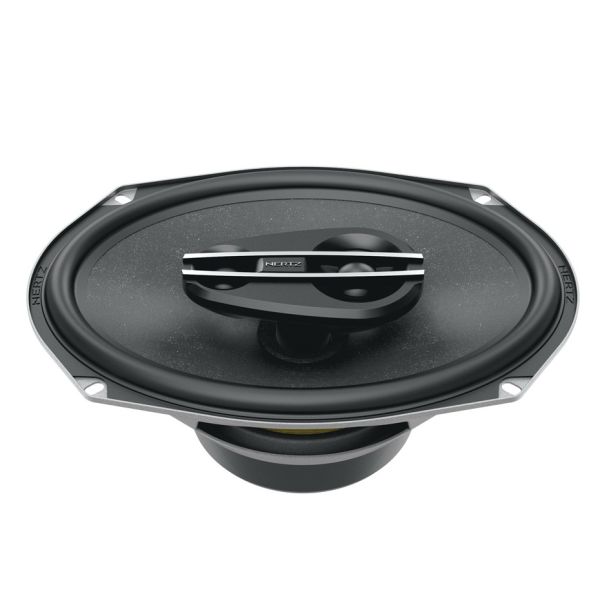

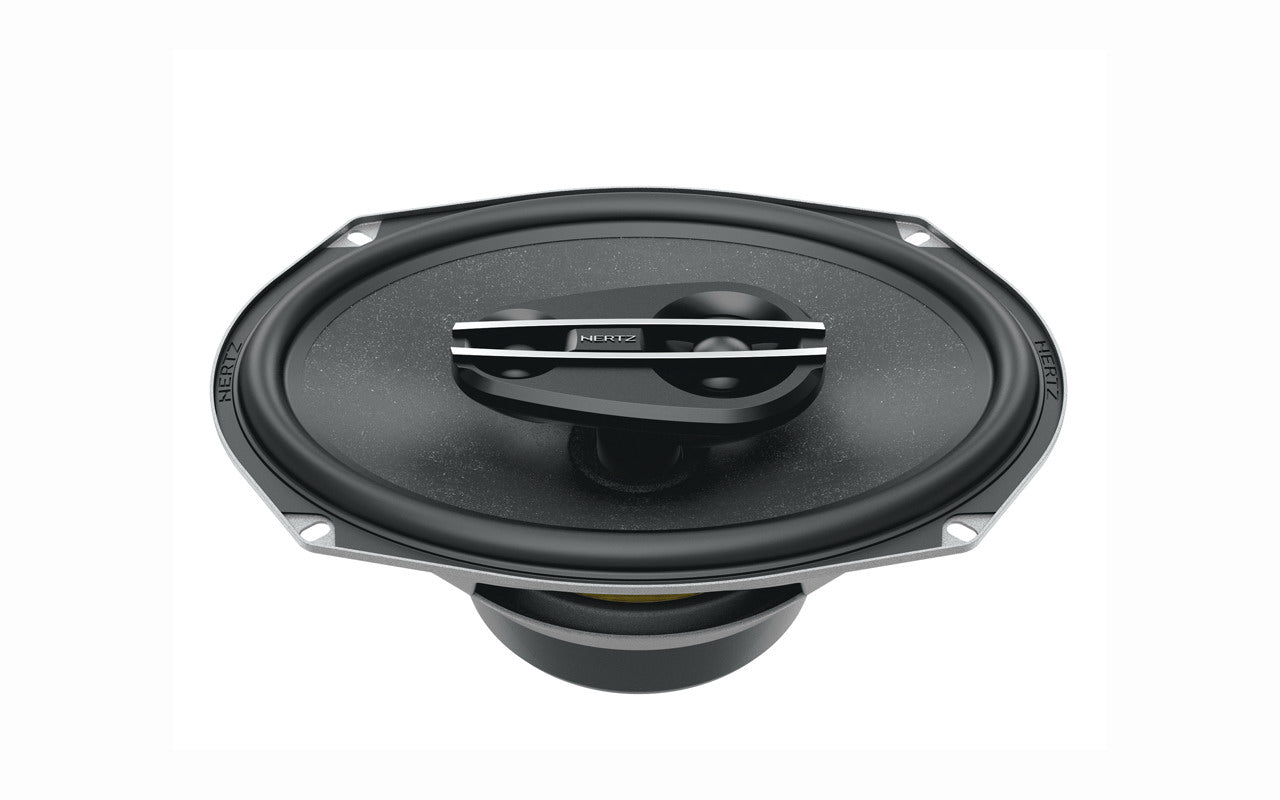

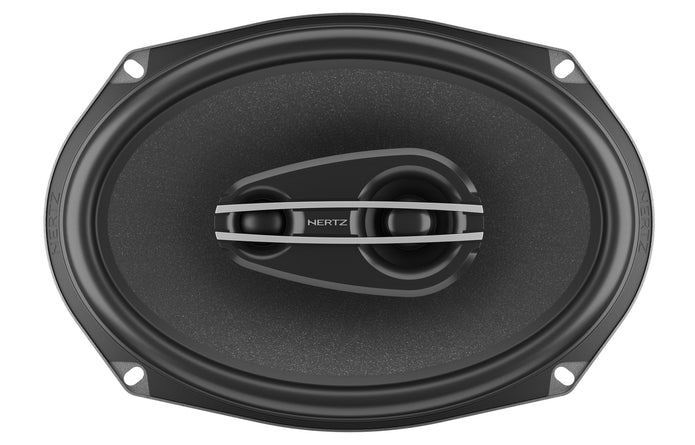

CENTO 6x9" 3-WAY COAXIAL SYSTEM 300W WITH GRILLES

Description

This three-way elliptical coaxial CX690 features a 6x9 inch cone designed to achieve maximum performance in horizontal installations while offering, even in this difficult condition, an exceptional tone balance and power handling across the board.

Specifications

• SPEAKER SYSTEM: 3-WAY COAXIAL
• SIZE:
  • WOOFER: 6x9"
  • TWEETER DIAPHRAGM: 40mm (1.58")
  • SUPETWEETER DIAPHRAGM: 20mm (0.8")
• VOICE COIL SIZE:
  • WOOFER: 30mm (1.2")
  • TWEETER: 28mm (1.1")
  • SUPERTWEETER: 20mm (0.8")
• POWER HANDLING:
  • PEAK: 300W
  • CONTINUOUS: 100W
• SENSITIVITY: N/A
• IMPEDANCE: 4 OHM

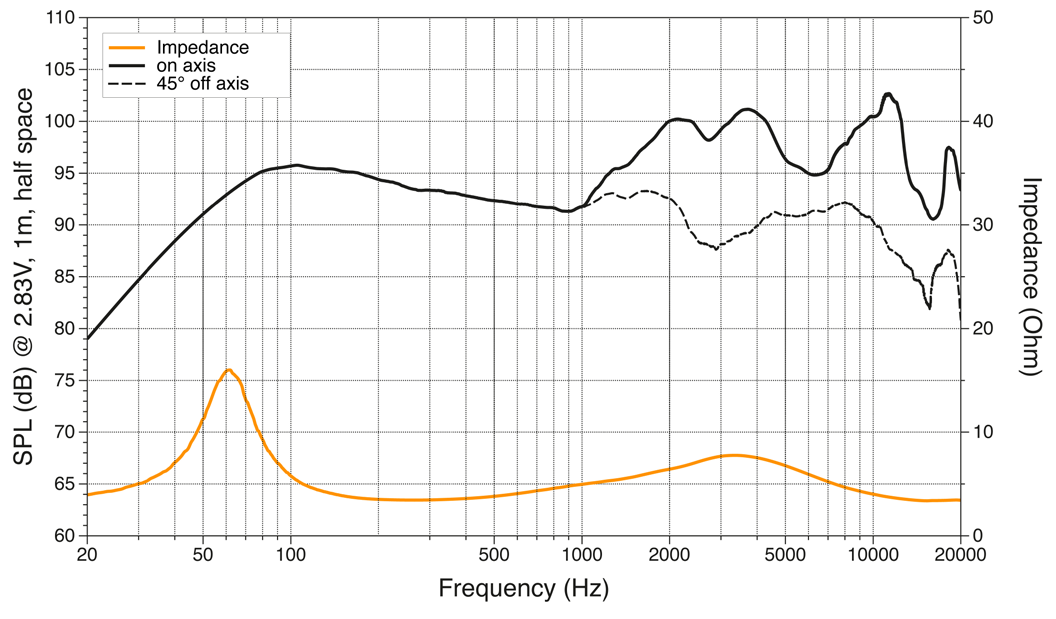

• FREQUENCY RESPONSE: 40 - 23KHZ
• WOOFER MAGNET SIZE: 100mm (D) x 32mm (D) x 15mm (H)
• TWEETER MAGNET SIZE: 19mm (D) x 3mm (D)
• WOOFER MAGNET: HIGH DENSITY FLUX FERRITE
• TWEETER MAGNET: NEODYMIUM
• CONE: SEMI-PRESSED PAPER & MICA
• DOME: PEI
• WEIGHT OF ONE SPEAKER: 1.55KG

Features

• 6x9 Inch semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping
• Wide rubber suspension engineered for a long excursion and excellent sound damping
• High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels
• Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations
• 40-millimetre dome tweeter for efficient distortion-free mid-high frequency reproduction
• 20-millimetre dome super tweeter to maximize the level of very high frequencies in horizontal installations
• Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modelling), to provide an extremely linear frequency response in off-axis installations
• Includes an elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh

Packaging

Giftbox
