CENTO 6.5" 2-WAY COAXIAL SPEAKER - PAIR (CX 165)
CENTO 6.5
CENTO 6.5
CENTO 6.5
CENTO 6.5
CENTO 6.5
CENTO 6.5

CENTO 6.5" 2-WAY COAXIAL SPEAKER - PAIR (CX 165)

Contact Us to order

    Description

    The Hertz Cento CX 165 (Order Code CX165) 6.5" two way coaxial loudspeakers represent a major design challenge due to their acoustic outputs critical nature. Being installed in an OEM placement often unfavourable to reproduction, our R&D experts made strides to achieve high performance, while promptly addressing the problem. Hence, the Cento two-way coaxials CX165 features the new 24-millimetre (0.9") Tetolon dome tweeter that delivers a more musical and detailed sound compared to ones made from traditional plastic materials. Plus, the dispersion has been optimised for off-axis listening by adding in the SPP-M cone (Semi Pressed Paper-Mica) that ensures superior acoustic and damping characteristics across the board.

    Specifications

    • System: Coaxial
    • Size: 165mm (6.5")
    • Power Handling:
      • Continuous: 70W
      • Peak: 210W
    • Impedance: 4 Ohm
    • Woofer Voice Coil: 25mm (1")
    • Tweeter Voice Coil: 13mm (0.5")

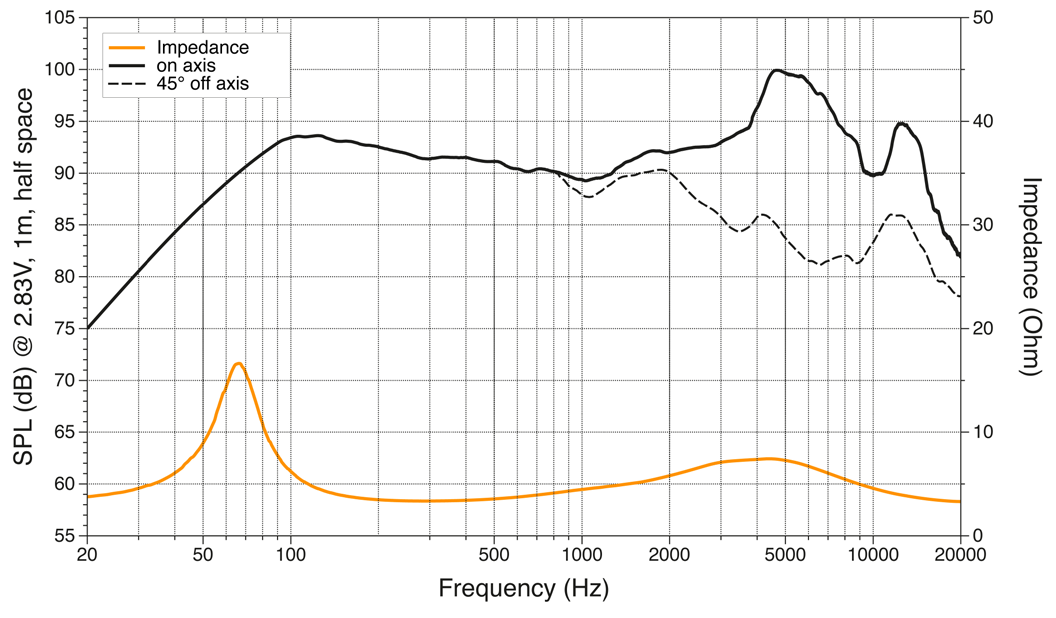

    • Frequency Response: 55 - 22k Hz

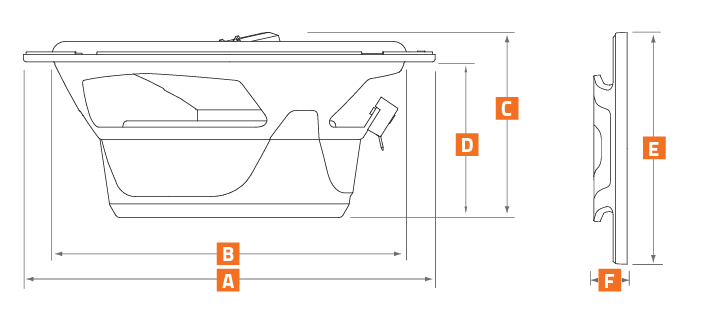

    • Woofer Magnet Size (D x d x h): 85 x 32 x 15mm (3.35 x 1.26 x 0.59")
    • Tweeter Magnet Size (D x h): 13 x 2 (0.51 x 0.08")
    • Weight of One Speaker: 0.95 kg
    • Woofer Magnet: High Density Flux Ferrite
    • Tweeter Magnet: Neodymium
    • Cone: Semi-pressed paper + Mica
    • Dome: Tetolon
    • Xmech: +/- 4.9mm (0.19")

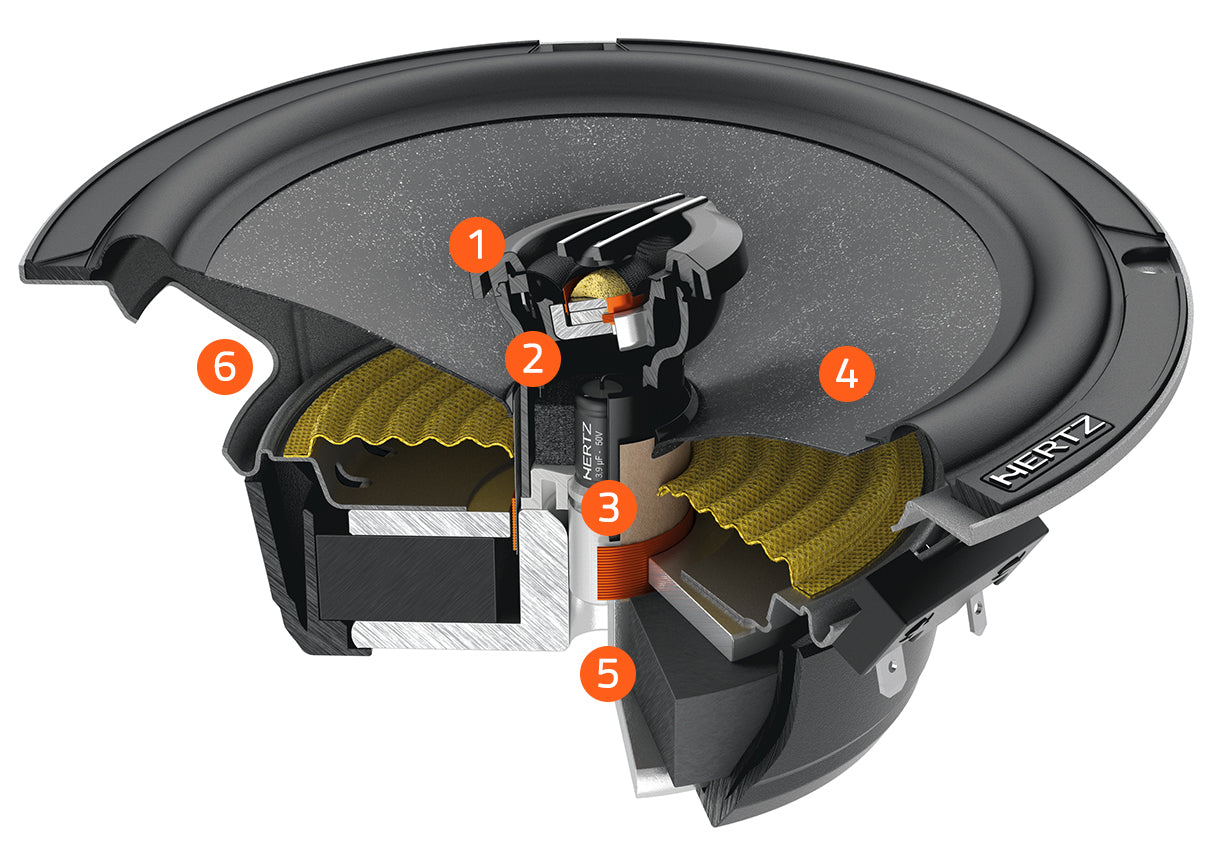

    Features

    • Soft Tetolon fibre 24-millimetre dome tweeter cooled with ferrofluid, for extended and natural high frequencies
    • RHFC (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario
    • Tweeter faceplate geometry optimised with FEM simulations (Finite Element Modelling), to provide an extremely linear frequency response in off-axis installations
    • 25-millimetre woofer voice coil featuring an aluminium former to guarantee high excursion and power handling
    • 165-millimetre semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping

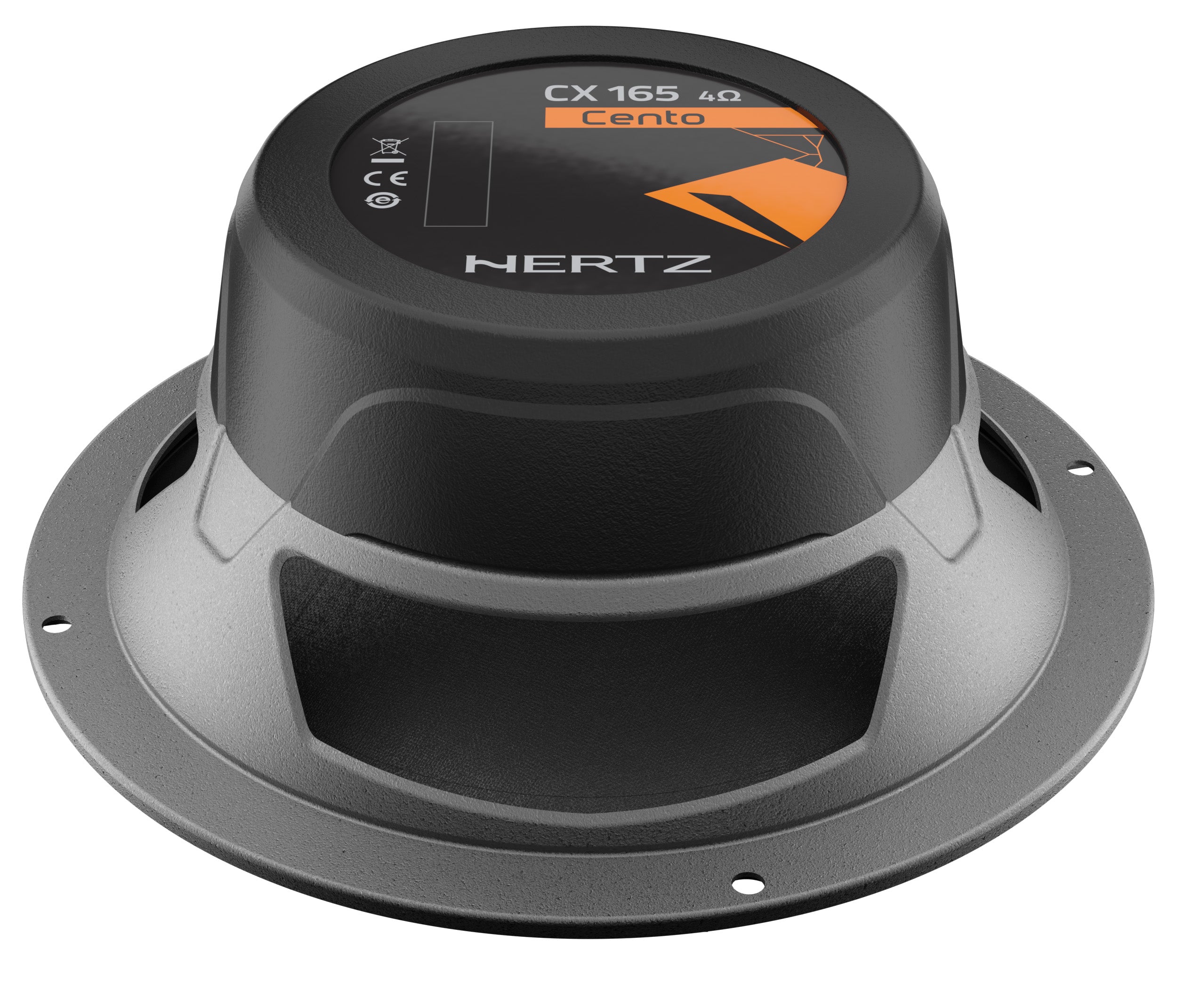

    • High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels
    • Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations
    • Optional elegant grille (Order Code CG165) made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

    Packaging

    Giftbox
