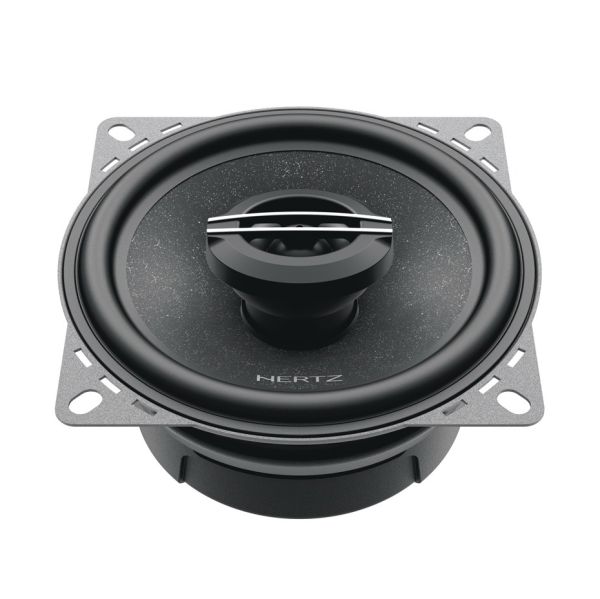

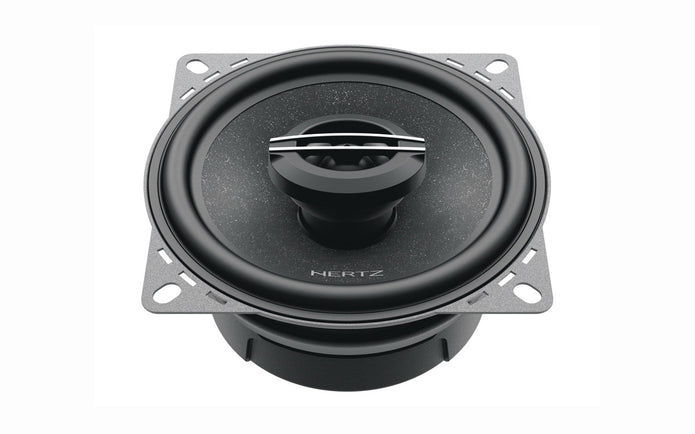

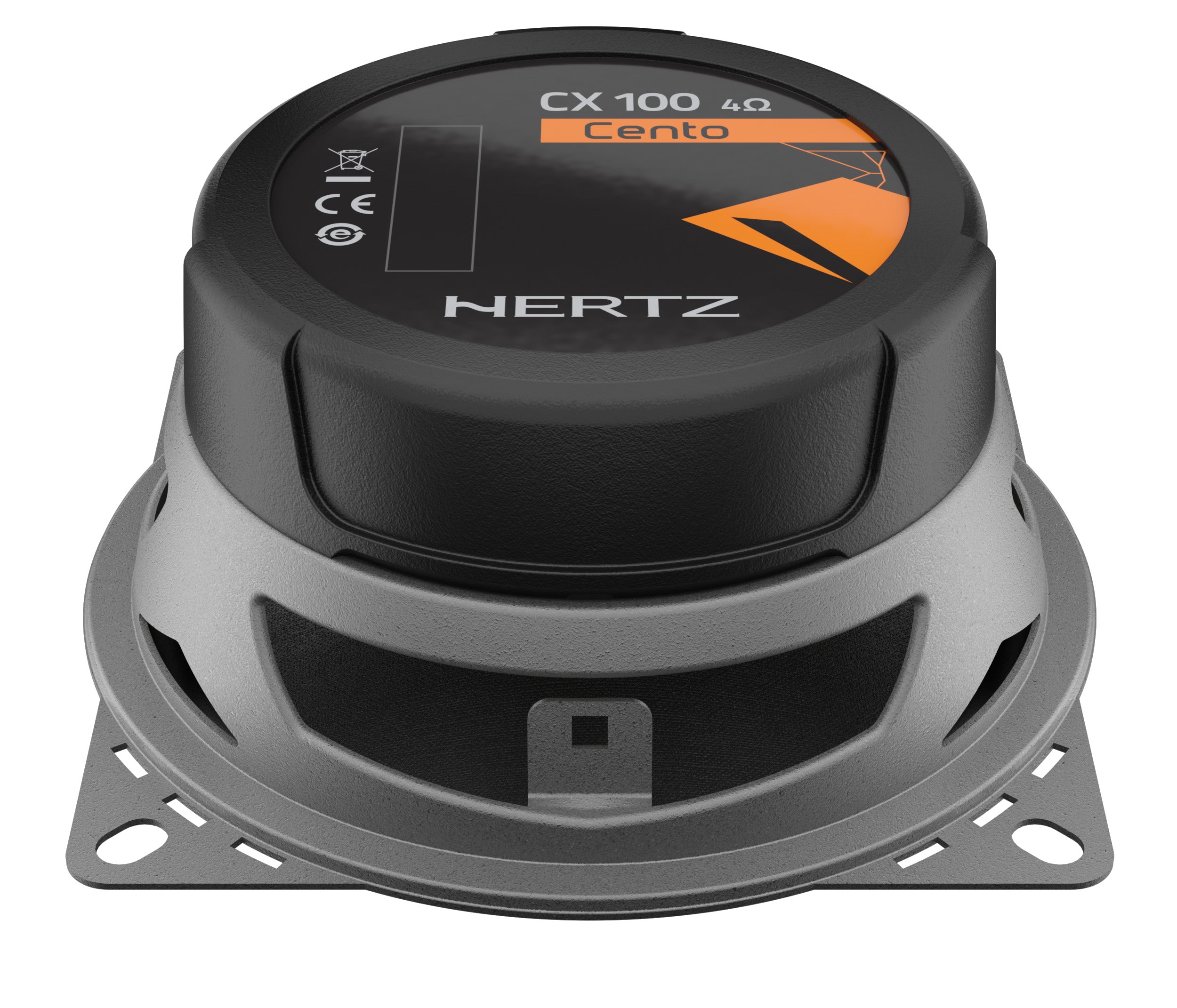

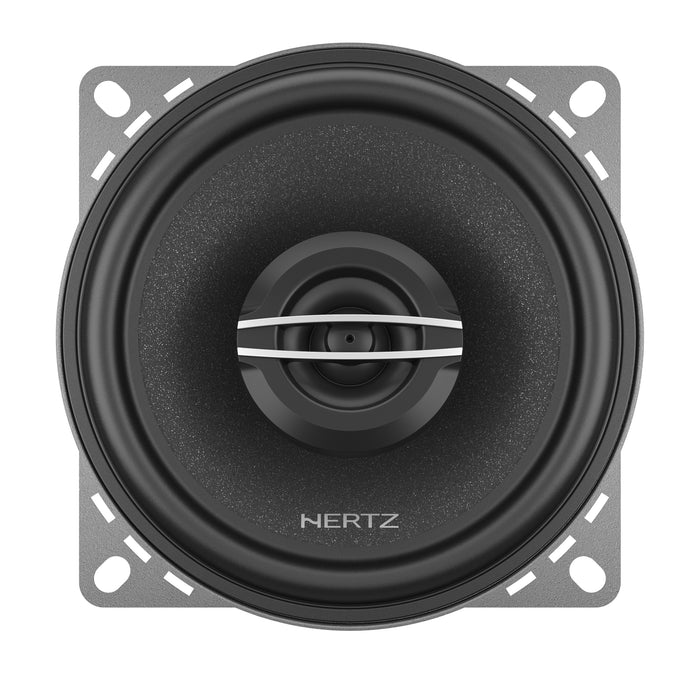

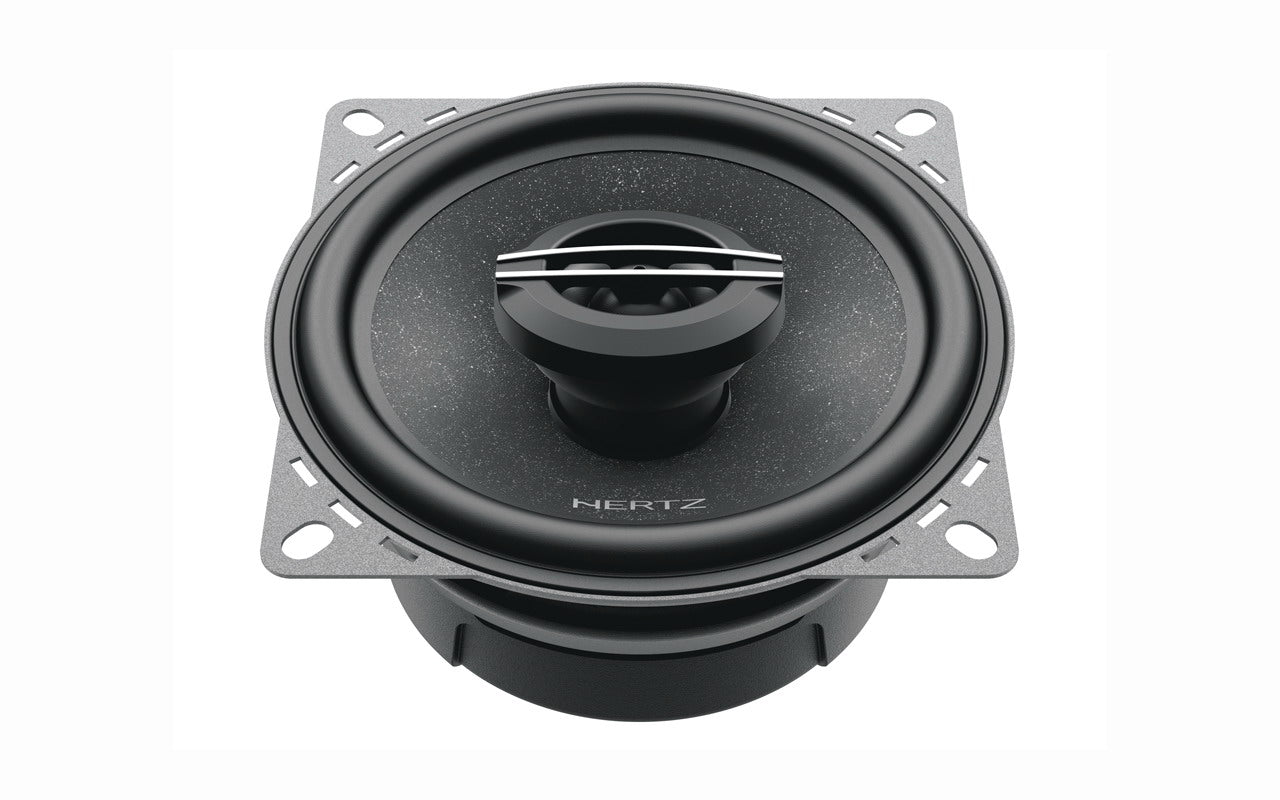

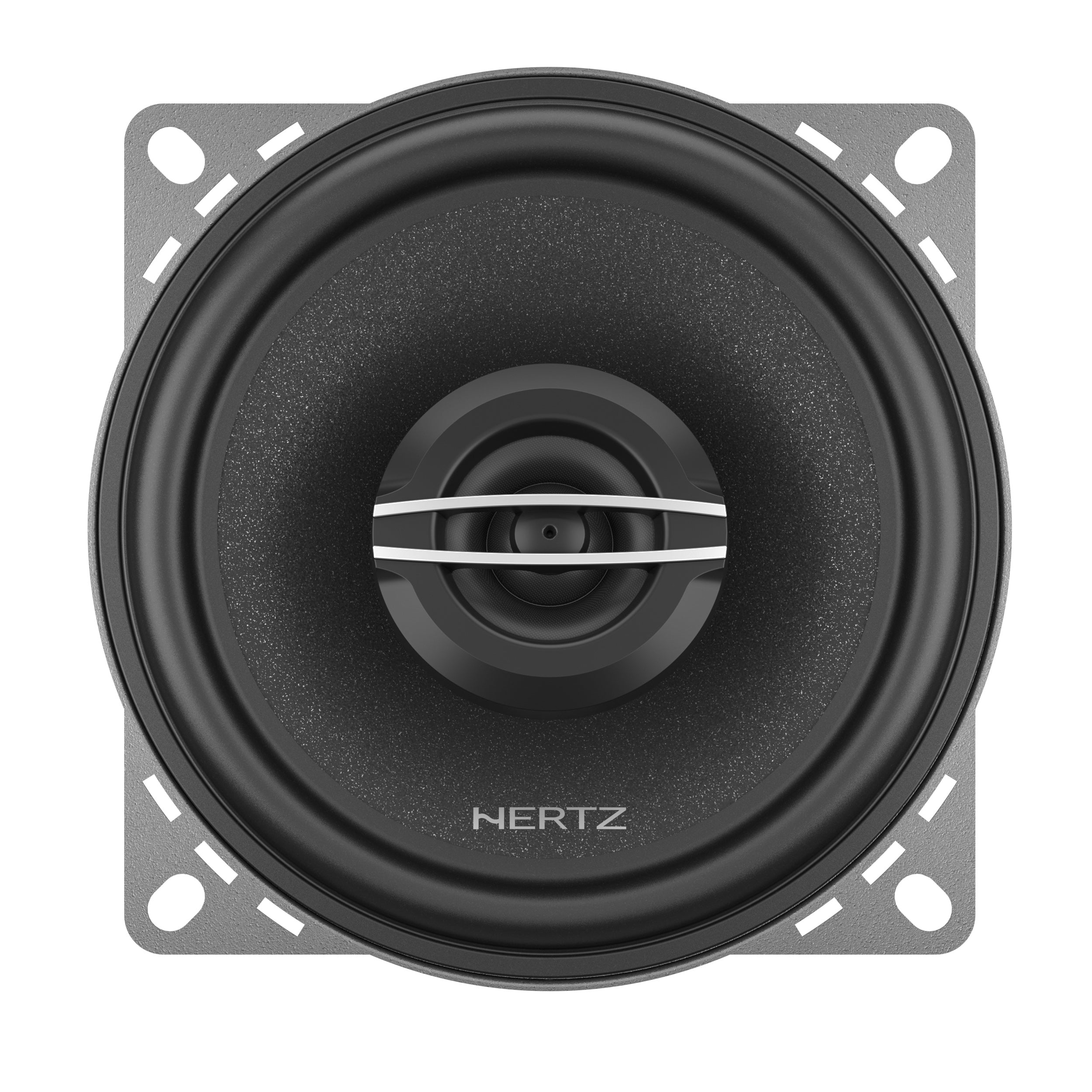

CENTO 4" 2-WAY COAXIAL SPEAKER - PAIR (CX 100)
CENTO 4
CENTO 4
CENTO 4
CENTO 4
CENTO 4

CENTO 4" 2-WAY COAXIAL SPEAKER - PAIR (CX 100)

Contact Us to order

    Description

    The Hertz Cento CX 100 (Order Code CX100) 4" two way coaxial speaker pose a major design challenge due to the critical nature of their acoustic output, being installed in an OEM placement often unfavourable to reproduction. In order to achieve high performance, a great engineering effort was put into place, promptly addressed by our R&D team. The Cento two-way coaxials CX100 features the new 24-millimetre (0.9 Inch) Tetolon dome tweeter that delivers a more musical and detailed sound compared to the more traditional plastic materials. With dispersion optimised for off-axis listening, the SPP-M cone (Semi Pressed Paper-Mica) has been added to ensure superior acoustic and damping characteristics.

    Specifications

    • System: Coaxial
    • Size: 100mm (4")
    • Power Handling:
      • Continuous: 40W
      • Peak: 120W
    • Impedance: 4 Ohm
    • Woofer Voice Coil: 25mm (1")
    • Tweeter Voice Coil: 13mm (0.5")

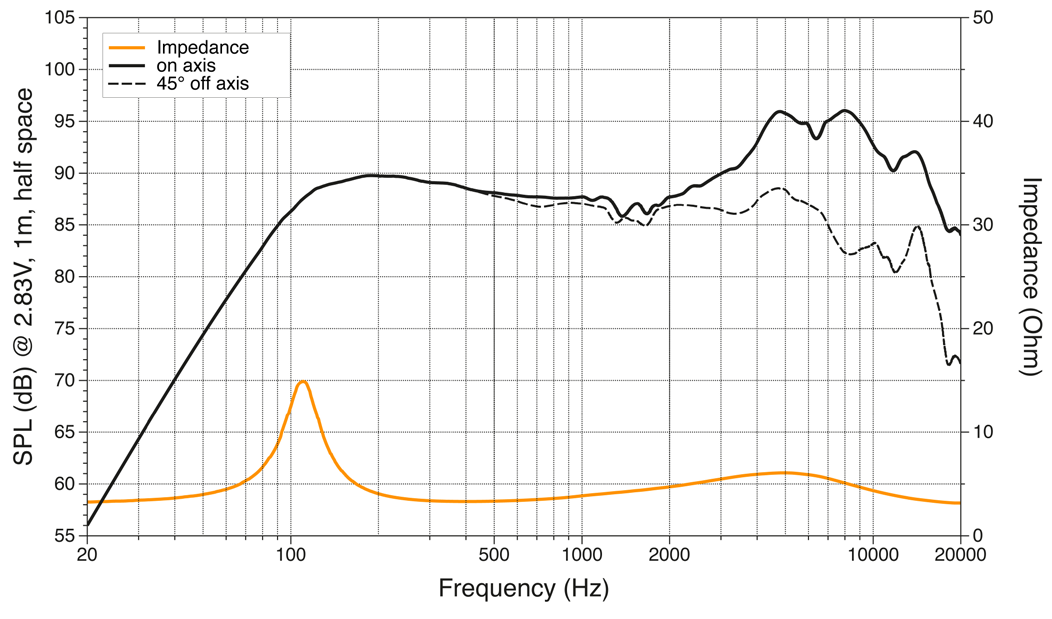

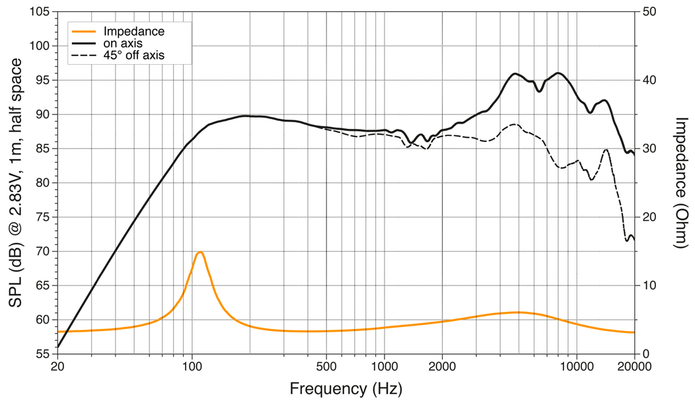

    • Frequency Response: 80 - 22k Hz
    • Woofer Magnet Size (D x d x h): 70 x 32 x 10mm (2.76 x 1.26 x 0.39")
    • Tweeter Magnet Size (D x h): 13 x 2 (0.51 x 0.08")
    • Weight of One Speaker: 0.47 kg
    • Woofer Magnet: High Density Flux Ferrite
    • Tweeter Magnet: Neodymium
    • Cone: Semi-pressed paper + Mica
    • Dome: Tetolon
    • Xmech: +/- 2.9mm (0.11")

    Features

    • Soft Tetolon fibre 24-millimetre dome tweeter cooled with ferrofluid, for extended and natural high frequencies
    • RHFC (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario
    • Tweeter faceplate geometry optimised with FEM simulations (Finite Element Modelling), to provide an extremely linear frequency response in off-axis installations
    • 4.25-millimetre woofer voice coil featuring an aluminium former to guarantee high excursion and power handling
    • 100-millimetre semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping
    • High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels
    • Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations
    • Optional elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh

    Packaging

    Giftbox
