CENTO 10" 500W ACTIVE SEALED SUBWOOFER BOX (CBA 250)
CENTO 10
CENTO 10
CENTO 10

CENTO 10" 500W ACTIVE SEALED SUBWOOFER BOX (CBA 250)

Contact Us to order

    Description

    Hertz Cento CBA 250 (Order Code CBA250) active subwoofer box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S2 (2 Sides, 2 Sounds) design, the plug and play terminal block and ultra-compact size. The SSP (Sub Smart Plug) terminal block is provided with a single plug and play connector to be able to disconnect the box easily and safely. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (high efficiency, low impedance), which thanks to the absence of the DC-DC voltage booster reach the impressive 90 percent efficiency level, very close to the theoretical limit of the D-Class. The Butterworth low pass filter at 12dB Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 - 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 – 180 degree) completes the equipment. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources.

    Specifications

    • Woofer Size: 250 mm (10")
    • Enclosure Size: 440 x 334 x 135mm
    • Power Handling:
      • Continuous: 250W
      • Peak: 500W
    • Impedance: 0.4 Ohm
    • Design: Active sealed subwoofer box
    • Voice Coil: 60mm (2.36")
    • Frequency Response: 20 - 200 Hz
    • Magnet Size: 140 x 70 x 30 mm
    • Magnet: High density flux ferrite
    • Cone: Pressed Paper
    • Xmech: 14.75 mm
    • Voice Coil Type: Copper

    Features

    • Butterworth low-pass filter at 12dB Oct. with variable cutting frequency (50-200 Hz), Subsonic filter, phase control (0 – 180 degree), and adjustable bass-boost 0-6 db at 45Hz
    • Defeatable filter to use the sub dedicated output of a processor
    • High-level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources
    • ART turn on function (Automatic Remote Turn-On) selectable among: Remote-in, Hi-level, Audio signal
    • Box with ultra-low profile (158 mm) in air suspension, designed to take full advantage of the performance of the 10 inch high-impedance driver
    • Down-firing levelling feet with velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal
    • Rounded corners allow easy placement in the trunk and act as a reinforcement to reduce enclosure resonances

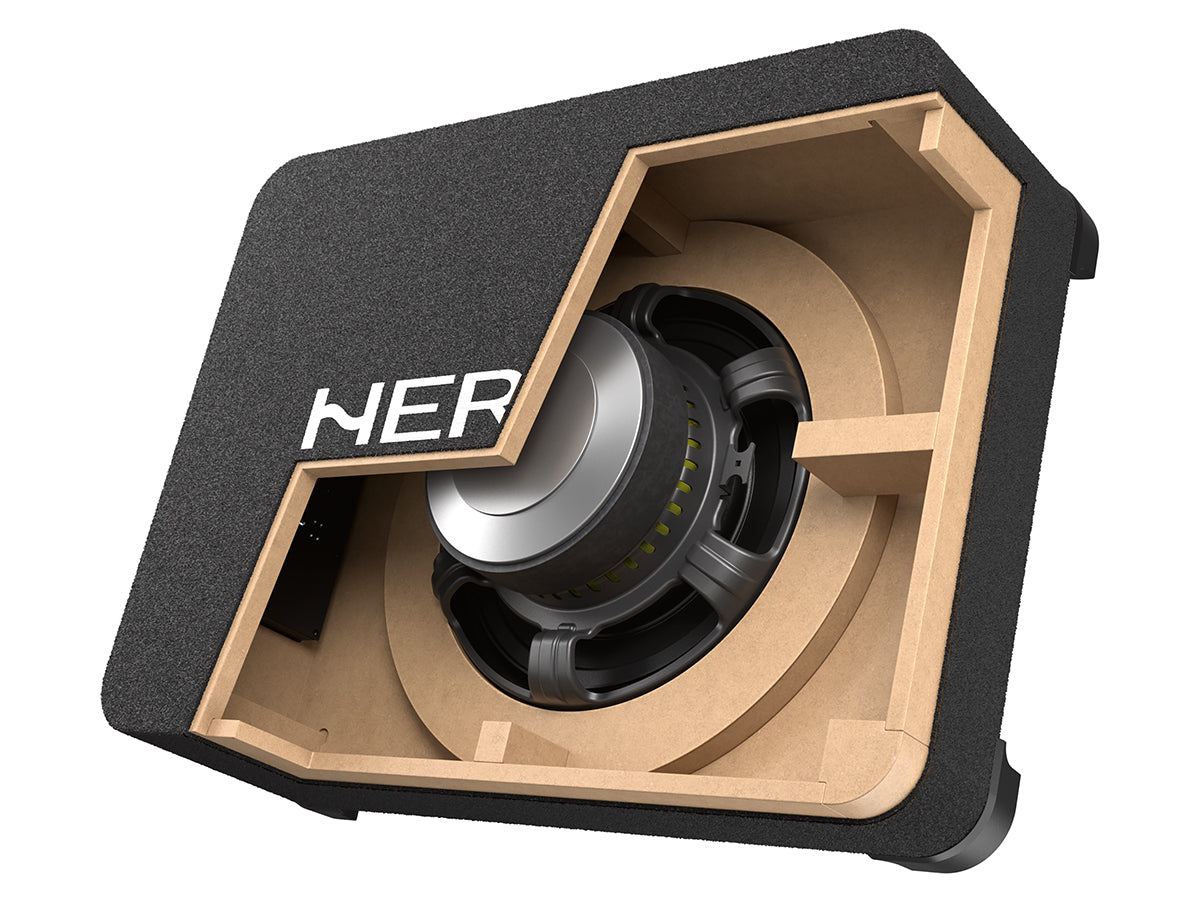

    • The exclusive design of the cone, dust-cap, and basket geometry to achieve a wide linear excursion (9 mm in one direction), keeping the depth required for the assembly to a minimum.
    • HRC AP remote control included
    • A sturdy metal grille is included, for total protection of the subwoofer driver
